Product Model
3LD2113-1TL53
Selling Points
- 1Reliable Emergency Switching-Off Solution: Designed for critical applications, ensuring safe and swift shutdown.
- 24-Pole Design: Provides robust and efficient switching capabilities.
- 325 A Current Rating: Suitable for high-current applications.
- 49.5 kW Operating Power at AC-23 A 400 V: Handles significant electrical loads.
- 5Floor Mounting with Door Coupling: Easy installation and operation with a rotary mechanism.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

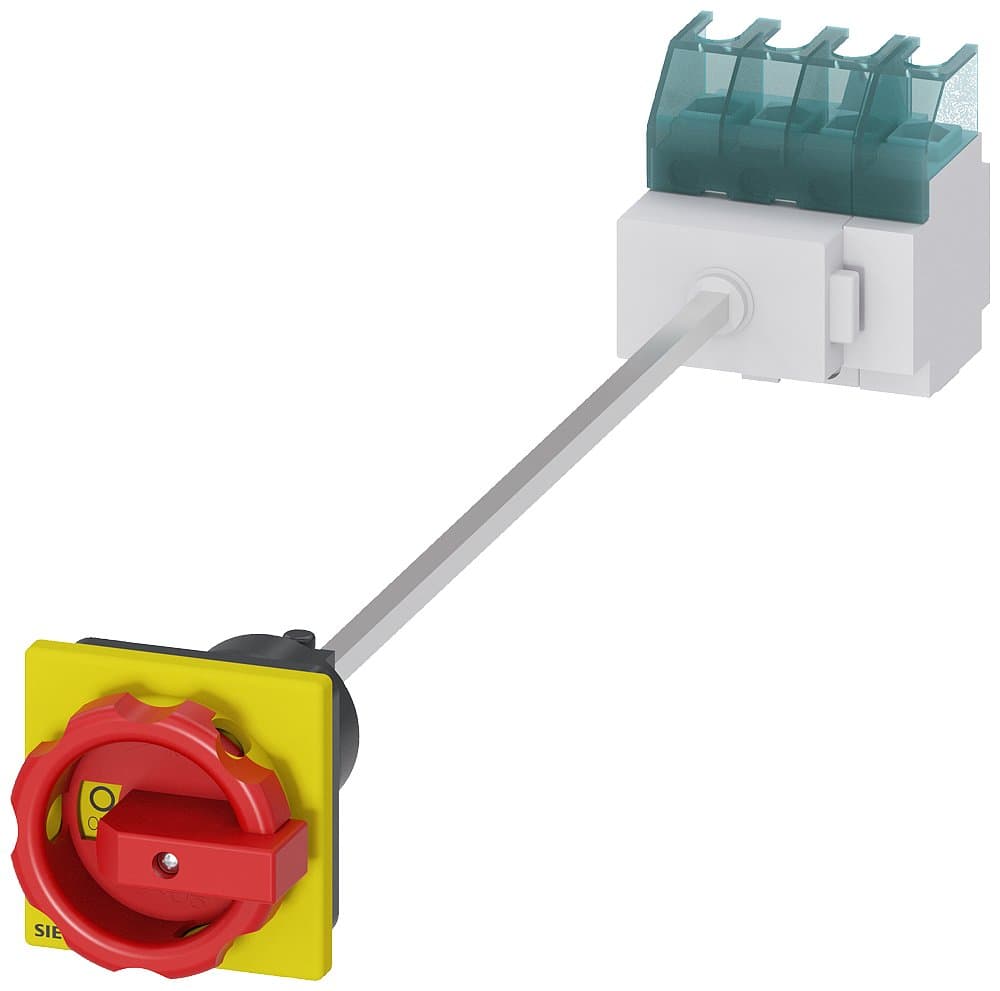

Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P+N, rotary operation mechanism with door coupling, red/yellow handle, base-mounted installation, door-mounted four-hole installation, AC-23A/9.5KW | Installation Type | Base-mounted installation, door-mounted four-hole installation |
Other | AC-23A/9.5KW | Poles | 3P+N |
In(A) | 25 | Specification | 3LD21【25A】 |
Switch Type | Rotary operation mechanism with door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2113-1TL53 |
Specifications may be subject to change without notice
