Product Model
3LD2144-1TL53
Selling Points
- 1Emergency Switching-Off Capability: Quickly disconnect power in emergency situations.
- 2Control Power Availability: Maintain control power availability when the switch is in the OFF position.
- 34-Pole Configuration: Suitable for applications requiring four poles.
- 4High Current Rating: Handles up to 25A of current.
- 5Floor Mounting with Door: Easy installation with floor mounting and door access for maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

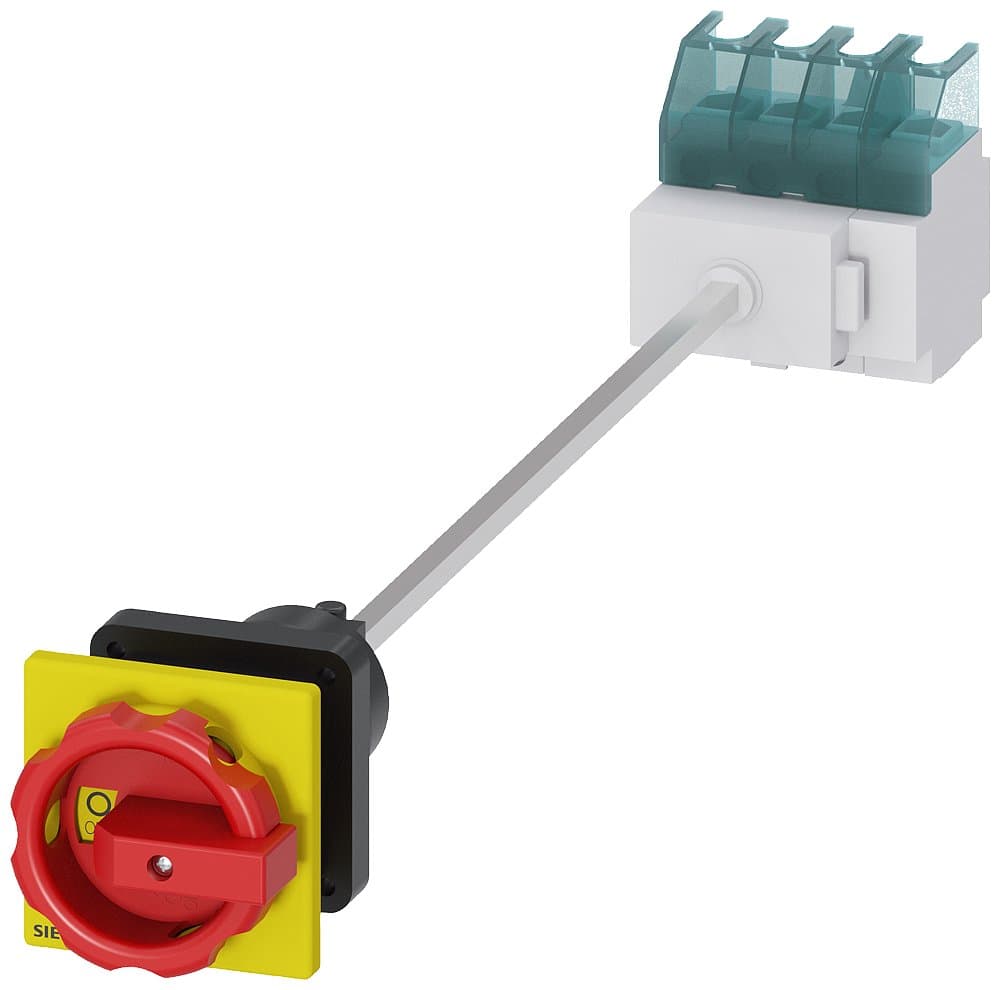

Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P+N, rotary operating mechanism with door coupling, red/yellow handle, base-mounted installation, center hole in cabinet door, AC-23A/9.5KW | Installation Type | Base-mounted installation, center hole in cabinet door |
Other | AC-23A/9.5KW | Poles | 3P+N |
In(A) | 25 | Specification | 3LD21【25A】 |
Switch Type | Rotary operating mechanism with door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2144-1TL53 |
Specifications may be subject to change without notice
