Product Model
3LD2305-0TK13
Selling Points
- 1Emergency Switching-Off Capability: Designed for immediate shutdown in critical situations.
- 2High Current Rating: Handles up to 160A, ensuring reliable operation under heavy loads.
- 3Front-Mounted Knob Operation: Easy to use with a front-mounted knob for quick switching.
- 4Robust Construction: Built to withstand temperatures from -25°C to 55°C.
- 5Compliant with Industry Standards: Meets stringent safety and performance requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

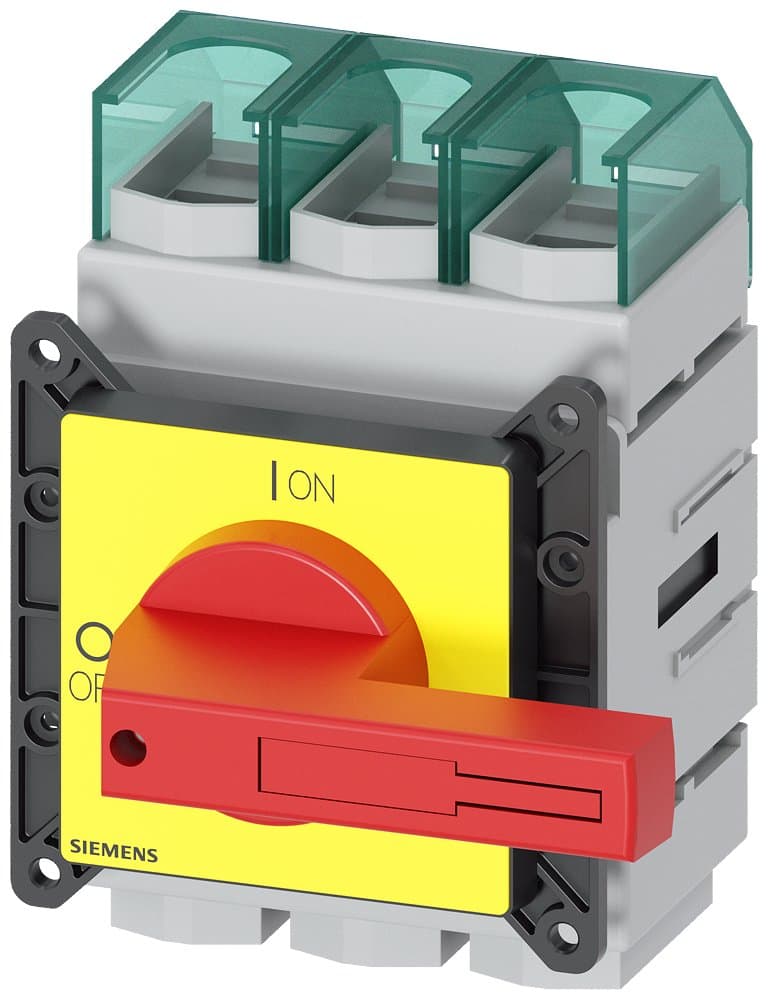

Description | Isolator switch, main control and emergency stop switch, 3LD2, 160A, 3P, with rotating operation mechanism, red/yellow handle, flush mounting, four-hole fixation on cabinet door, AC-3/50KW; AC-23A/75KW | Installation Type | Flush Mounting on Cabinet Door with Four-Hole Fixation |
Other | AC-3/50KW; AC-23A/75KW | Poles | 3P |
In(A) | 160 | Specification | 3LD23【160A】 |
Switch Type | With Rotating Operation Mechanism, Red/Yellow Handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2305-0TK13 |
Specifications may be subject to change without notice
