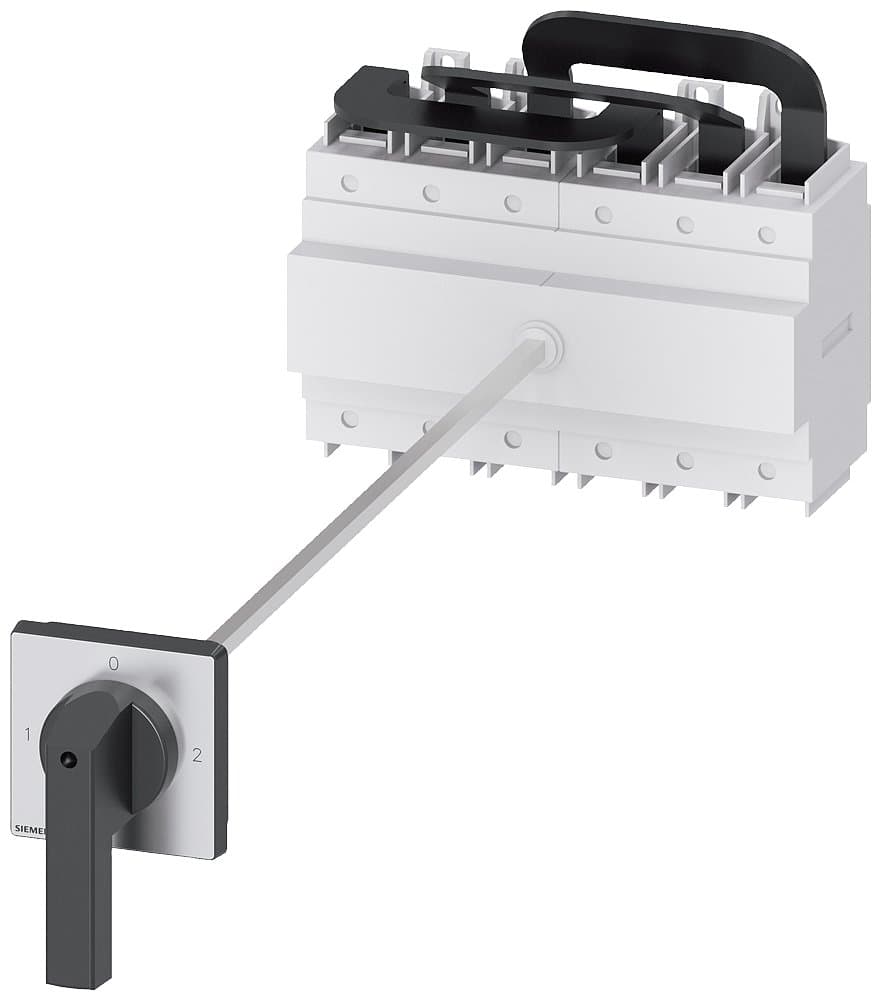

Product Model
3LD2318-7UK01
Selling Points
- 1High Power Handling: Operates at AC-23 A at 400 V, delivering 75 kW of power.
- 2Reliable Performance: SENTRON technology ensures consistent and reliable operation.
- 3Versatile Mounting: Floor mounting with door coupling for easy installation.
- 4Safety First: Designed as a change-over switch for secure electrical connections.
- 5Industrial Grade: Built to withstand demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 160A, 3P, transfer switch with door-coupled rotary operation mechanism, black handle, flush mounting, four-hole fixation on cabinet door, AC-3/50KW; AC-23A/75KW | Installation Type | Flush mounting on cabinet door with four-hole fixation |
Other | AC-3/50KW; AC-23A/75KW | Number of Poles | 3P |
In(A) | 160 | Specification | 3LD23【160A】 |
Switch Type | Transfer switch with door-coupled rotary operation mechanism and black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2318-7UK01 |
Specifications may be subject to change without notice
