Product Model

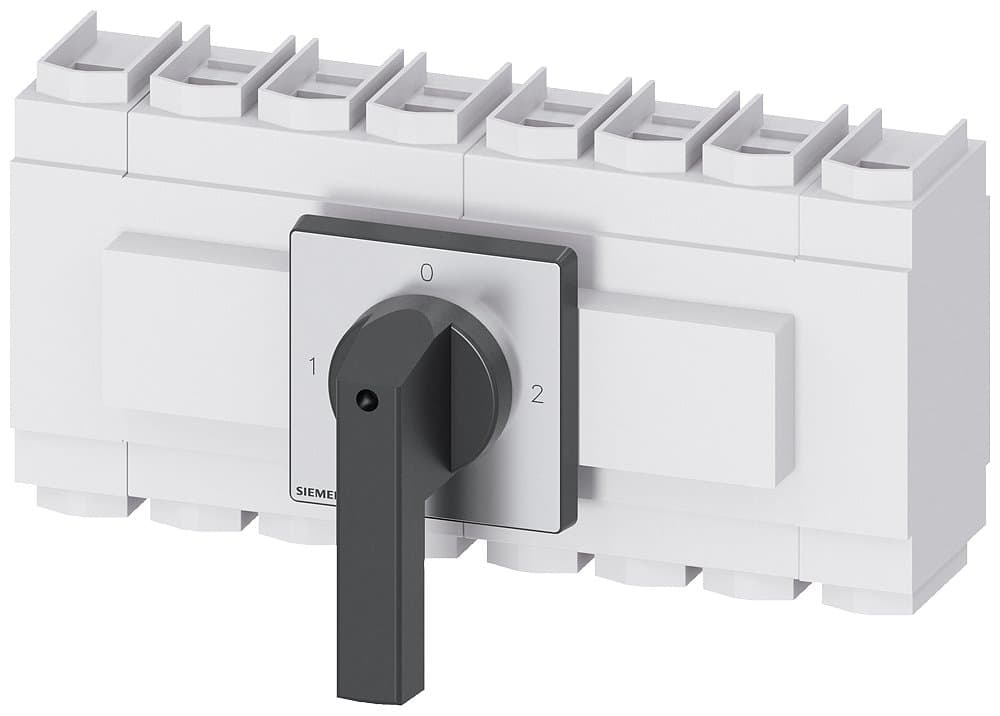

3LD2405-7UL01
Selling Points
- 1Reliable 4-pole switch disconnector with 250A max current.
- 2Front-mounted, knob-operated mechanism for easy operation.
- 3SENTRON series, ensuring high performance and durability.
- 4Ideal for industrial applications requiring change-over switches.
- 52-Year warranty and same-day shipping available.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 250A, 3P+N, transfer switch with selector switch operating mechanism, black handle, selector switch cannot be locked flush mounting, cabinet door four-hole installation, AC-3/110KW; AC-23A/132KW | Installation Type | Flush mounting cabinet door four-hole installation |
Other | AC-3/110KW; AC-23A/132KW | Number of Poles | 3P+N |
In(A) | 250 | Specification | 3LD24【250A】 |
Switch Type | Transfer switch with selector switch operating mechanism, black handle, selector switch cannot be locked | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2405-7UL01 |
Specifications may be subject to change without notice
