Product Model

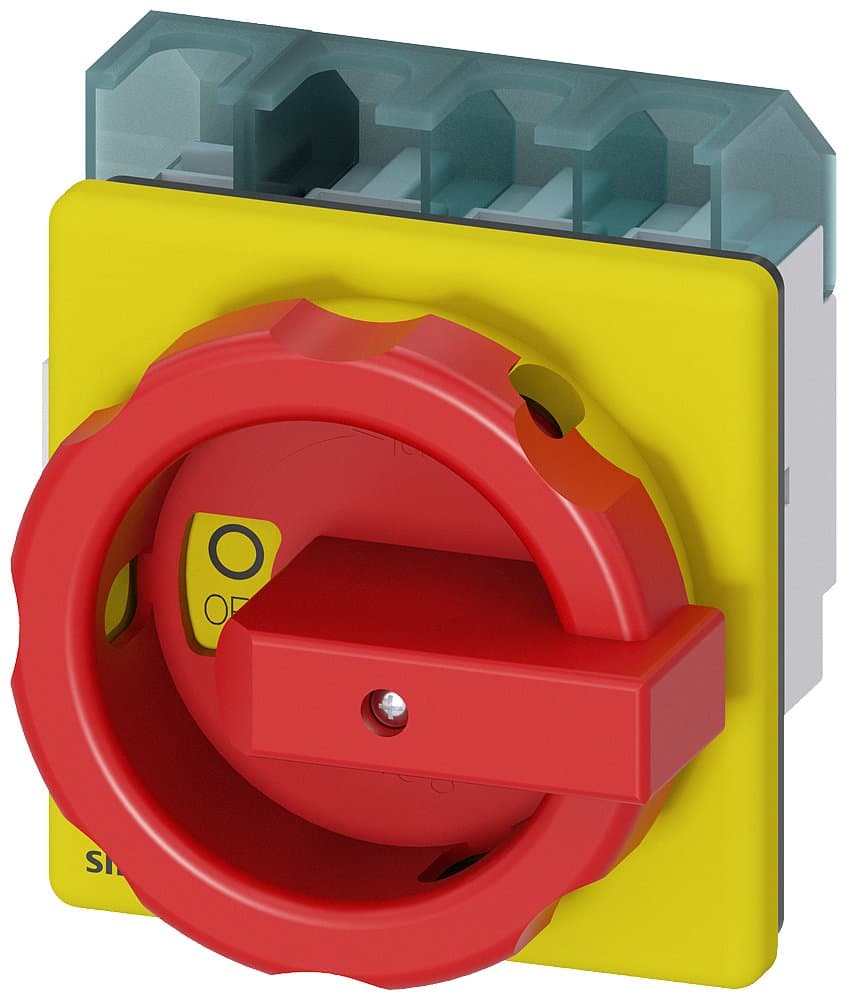

3LD2504-1TL53
Selling Points
- 1Emergency Switching-Off Capability: Quickly disconnects power in emergency situations.
- 2High Current Rating: Handles up to 63A of current.
- 3Front-Mounted Design: Easy installation with 4-hole mounting for the handle.
- 4IP65 Protection: Durable and resistant to dust and water.
- 5Rotary Operating Mechanism: Smooth and reliable operation with a short thumb-grip control element.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 63A, 3P+N, with rotary operating mechanism, red/yellow handle, flush mounted, four-hole installation on cabinet door, AC-3/18.5KW; AC-23A/22KW | Installation Type | Flush mounted cabinet door with four-hole installation |
Other | AC-3/18.5KW; AC-23A/22KW | Poles | 3P+N |
In(A) | 63 | Specification | 3LD25【63A】 |
Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2504-1TL53 |
Specifications may be subject to change without notice
