Product Model

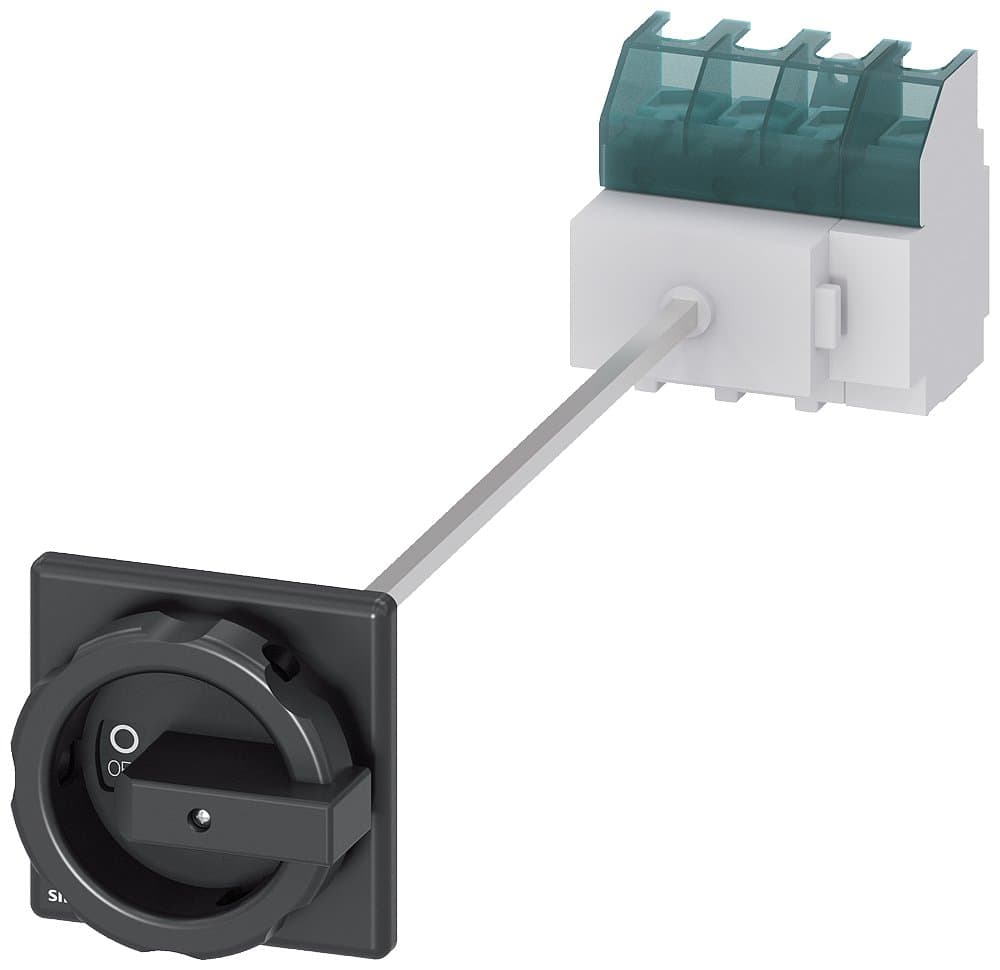

3LD2514-1TL51
Selling Points
- 1Reliable Main Switch Solution: Designed for high-performance applications, ensuring safe and efficient switching operations.
- 2Versatile Mounting Options: Suitable for floor mounting and encapsulated switches, offering flexibility in installation.
- 3High Current Rating: Handles up to 63A, making it suitable for demanding industrial environments.
- 4Safety-Oriented Design: Meets stringent safety standards with a short rotary knob design for easy operation.
- 5Compact Design: Ideal for space-constrained areas with a compact, black type of the driving mechanism.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
Description | Isolator switch, main and emergency stop switch, 3LD2, 63A, 3P+N, with door-coupled rotary operating mechanism, black handle, base-mounted installation, cabinet door with four-hole fixation, AC-23A/22KW | Installation Type: | Base-mounted installation, cabinet door with four-hole fixation |
Other: | AC-23A/22KW | Number of Poles: | 3P+N |
In(A): | 63 | Specification: | 3LD25【63A】 |
Switch Type: | With door-coupled rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2514-1TL51 |
Specifications may be subject to change without notice
