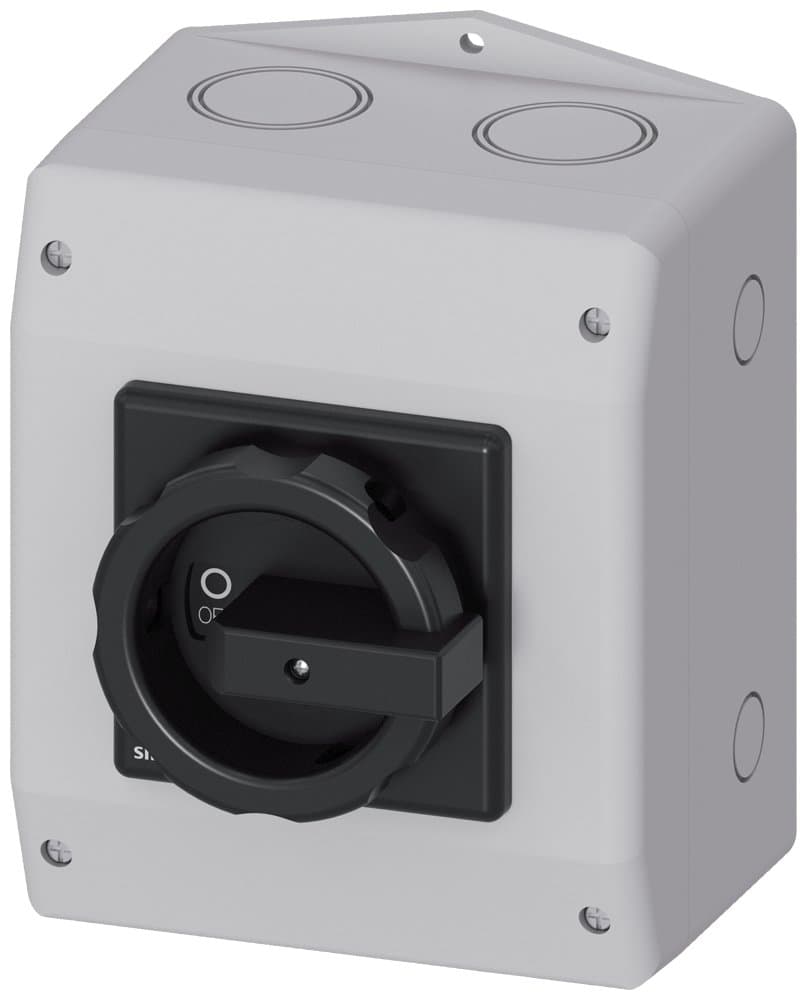

Product Model
3LD2565-0TB51
Selling Points
- 1Reliable 3-pole main switch with 63 A current rating.
- 2Operating power of 22 kW at AC-23 A at 400 V.
- 3Molded-plastic encapsulation for metric cable gland.
- 4Rotary operating mechanism for easy operation.
- 5Suitable for a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator Switch, Main and Emergency Stop Switch, 3LD2, 63A, 3P, Metric Thread Sealed Connection, Black Handle, Plastic Housing Installation, AC-23A/22KW | Installation Type | Plastic Housing Installation |
Terminal Type | PE+N | Other | AC-23A/22KW |
Number of Poles | 3P | In(A) | 63 |
Specification | 3LD25【63A】 | Switch Type | Metric Thread Sealed Connection, Black Handle |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3LD2565-0TB51 |
Specifications may be subject to change without notice
