Product Model

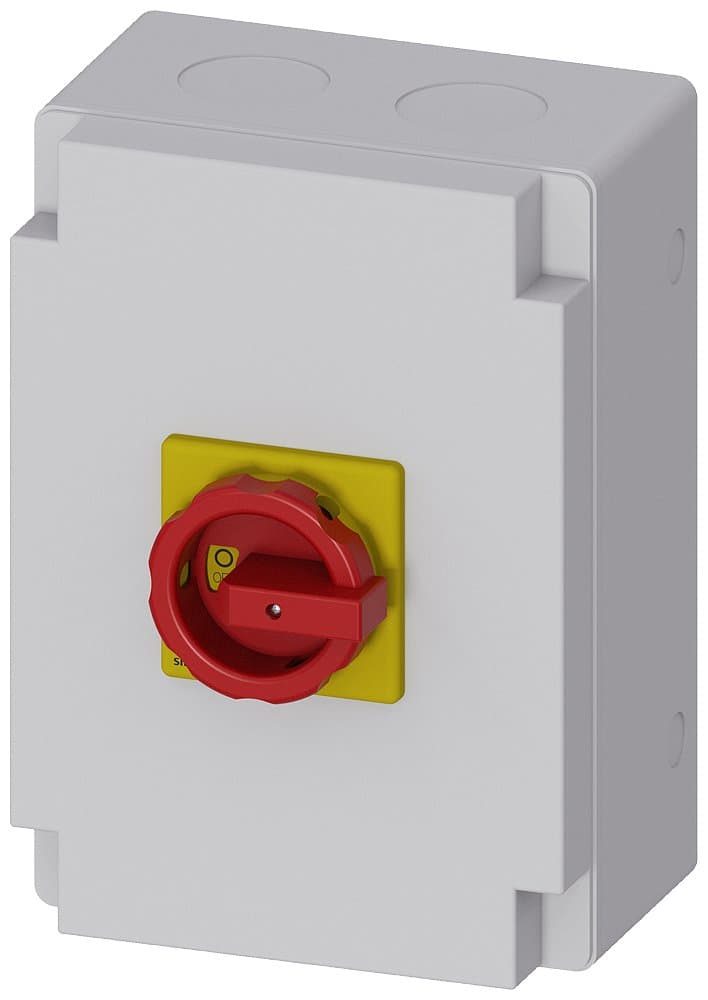

3LD2766-1GP53
Selling Points
- 1Emergency Switching-Off Capability: Quickly disconnects power in emergency situations.
- 23-Pole Design: Suitable for high-power applications with 3 poles.
- 3100 A Current Rating: Handles up to 100 A of current.
- 437 kW Operating Power: Supports operating power of up to 37 kW at AC-23 A 400 V.
- 5Molded Plastic Encapsulation: Durable and resistant to environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
Description | Isolator Switch, Main Control and Emergency Stop Switch, 3LD2, 100A, 3P, Metric Thread Sealed Connector, Red/Yellow Handle, Plastic Housing Installation, AC-23A/37KW, 1NO+1NC | Installation Type: | Plastic Housing Installation |
Terminal Type: | N | Others: | AC-23A/37KW, 1NO+1NC |
Poles: | 3P | In(A): | 100 |
Specification: | 3LD27【100A】 | Switch Type: | Metric Thread Sealed Connector, Red/Yellow Handle |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3LD2766-1GP53 |
Specifications may be subject to change without notice
