Product Model

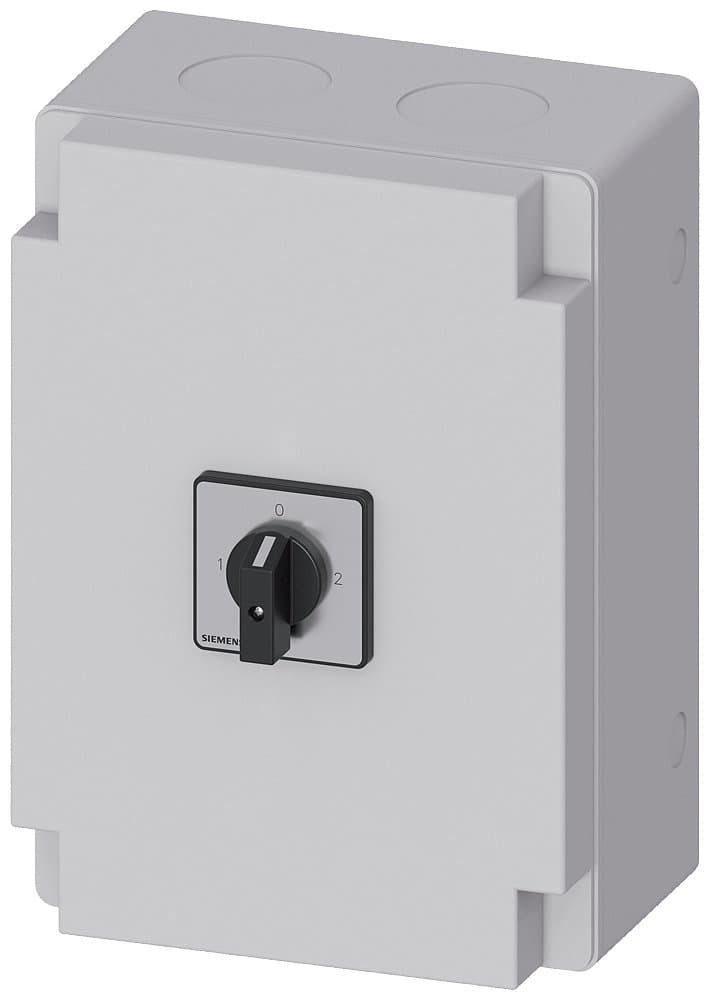

3LD2766-7UB01
Selling Points
- 1High current rating up to 100 A.
- 2Molded-plastic encapsulation for durability.
- 3Efficient operation with 37 kW at AC-23 A at 400 V.
- 4Compact design with IP65 protection.
- 5Suitable for various applications including load transfer and motor control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, Main control and emergency stop switch, 3LD2, 100A, 3P, Metric thread sealed connection, Transfer switch with selector switch operating mechanism, Handle cannot self-lock, Black handle, Plastic enclosure mounting, AC-3/30.5kW; AC-23A/37kW | Mounting Type | Plastic enclosure mounting |
Terminal Type | PE+N | Other | AC-3/30.5kW; AC-23A/37kW |
Number of Poles | 3P | In(A) | 100 |
Specification | 3LD27【100A】 | Switch Type | Metric thread sealed connection, Transfer switch with selector switch operating mechanism, Handle cannot self-lock, Black handle |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3LD2766-7UB01 |
Specifications may be subject to change without notice
