Product Model

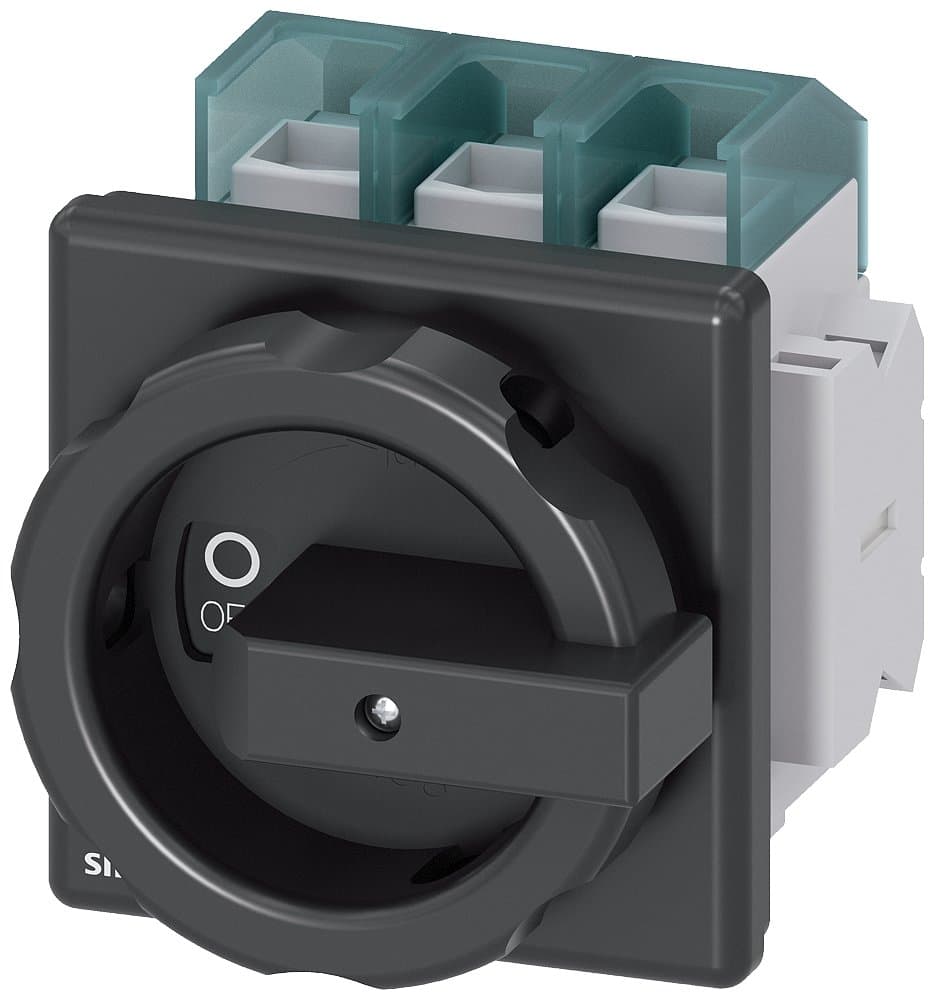

3LD2804-1TP51
Selling Points
- 1High amperage rating of 125A for reliable power control.
- 2Compact IP65 enclosure for durability and protection.
- 31NC-1NO contact form for precise switching operations.
- 4Short rotary knob actuator for easy operation.
- 5Suitable for indoor and OEM disconnect applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main and emergency stop switch, 3LD2, 125A, 3P, with rotary operating mechanism, black handle, flush-mounted, four-hole mounting on cabinet door, AC-23A/45KW, 1NO+1NC | Installation Type | Flush-mounted cabinet door with four-hole mounting |
Other | AC-23A/45KW, 1NO+1NC | Number of Poles | 3P |
In(A) | 125 | Specification | 3LD28【125A】 |
Switch Type | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2804-1TP51 |
Specifications may be subject to change without notice
