Product Model

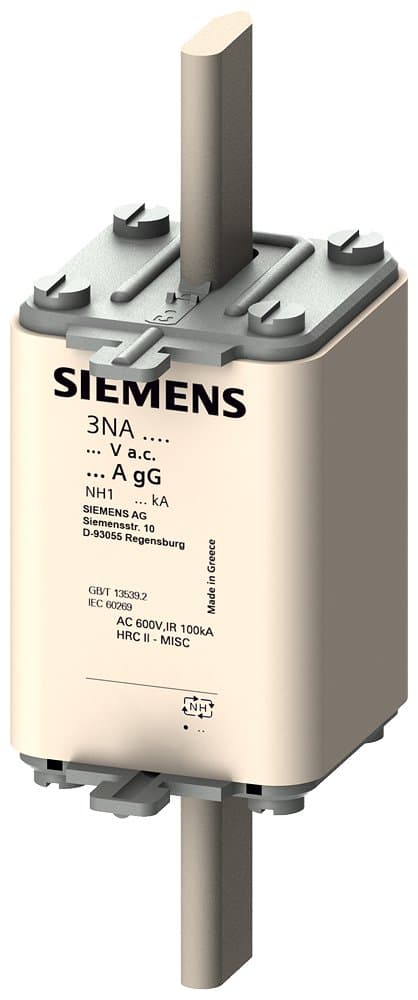

3NA3142
Selling Points
- 1High current rating of 224A for reliable protection.
- 2Compatible with both AC (500V) and DC (440V) voltages.
- 3Front indicator signals when the fuse cuts out for easy monitoring.
- 4Live grip lugs ensure secure handling and installation.
- 5Part of the NH1 series, known for its high-quality and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Description | NH Fuse Size 1 gG/gL 224A 500VAC/400VDC | Rated Voltage | 500VAC/440VDC |
Type | gG/gL [Full Range Protection for Cables and Wires (Overload & Short Circuit Protection)] | Rated Current In(A) | 224 |
Specifications | Size: 1 [16-250A] | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model | 3NA3142 |
Specifications may be subject to change without notice
