Product Model

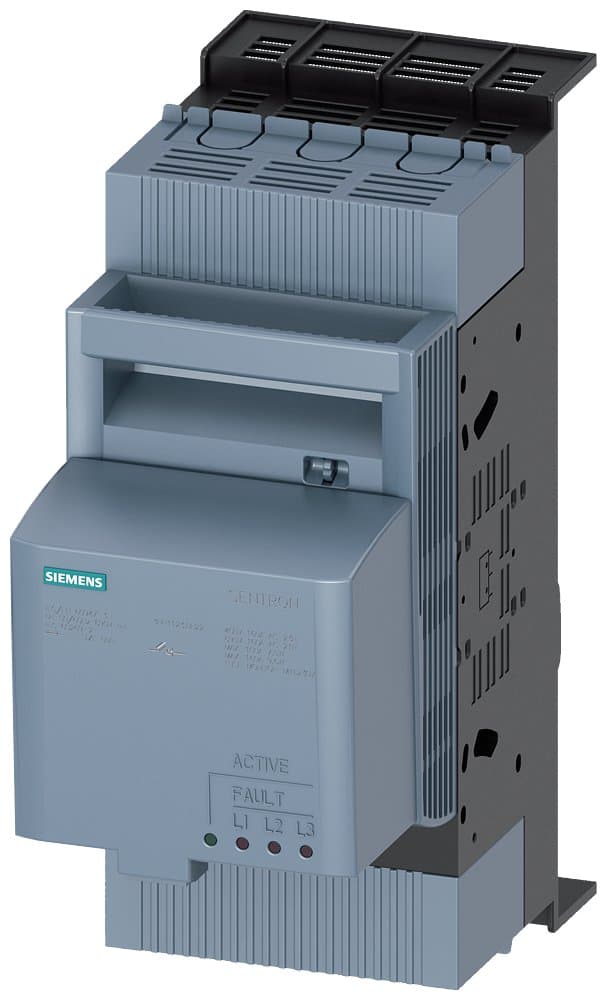

3NP1123-1BB22
Selling Points
- 1High Current Capacity: Handles up to 160A for reliable power distribution.
- 23-Pole Configuration: Suitable for various electrical installations requiring three poles.
- 3NH000 Busbar Compatibility: Designed for seamless integration with 8US busbar systems.
- 4Enhanced Safety Features: Protects users from electric shock with permanent switch-on and switch-off capabilities.
- 5Durable Construction: Built to withstand demanding electrical environments with robust materials.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 440 | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 000, 40mm busbar system, box terminal, 3P, electronic EFM10 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 40mm Busbar System |
Fuse Specification | Size: 000 | Terminal Type | Box Terminal |
Rated Current In(A) | 160 | Specifications | 3NP112【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1123-1BB22 |
Specifications may be subject to change without notice
