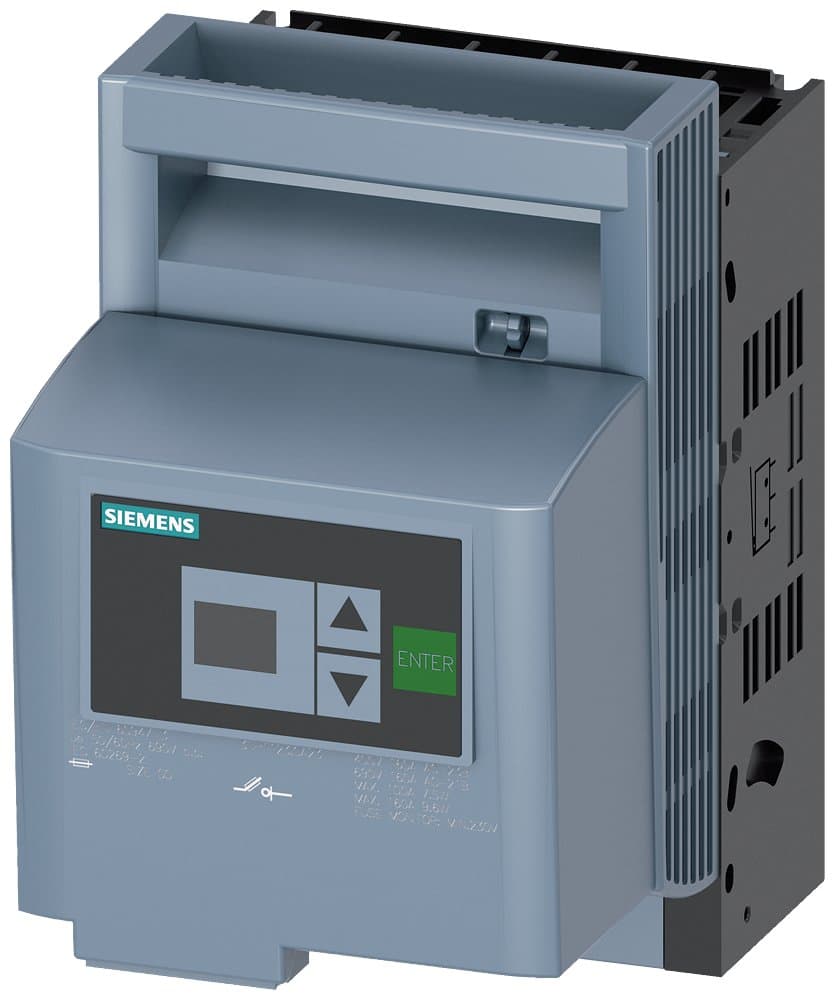

Product Model
3NP1123-1CA23
Selling Points
- 1Provides reliable overload and short-circuit protection for industrial plants.
- 2Incorporates a reach-round and touch protection system for safe mounting.
- 3Equipped with electronic fuse monitoring (EFM20) for real-time monitoring.
- 4Suitable for assembly on mounting plates, box terminals, and Siemens busbar systems.
- 5Designed with a degree of protection IP40 and rated for up to 690V AC operation voltage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 000, surface mounting, box terminal, 3P, electronic EFM20 fuse monitoring, | Fuse Monitoring | Electronic EFM20 Fuse Monitoring |
Mounting Type | Surface Mounting | Fuse Specification | Size: 000 |
Terminal Type | Box Terminal | Rated Current In(A) | 160 |
Specifications | 3NP112【160A】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3NP1123-1CA23 |
Specifications may be subject to change without notice
