Product Model

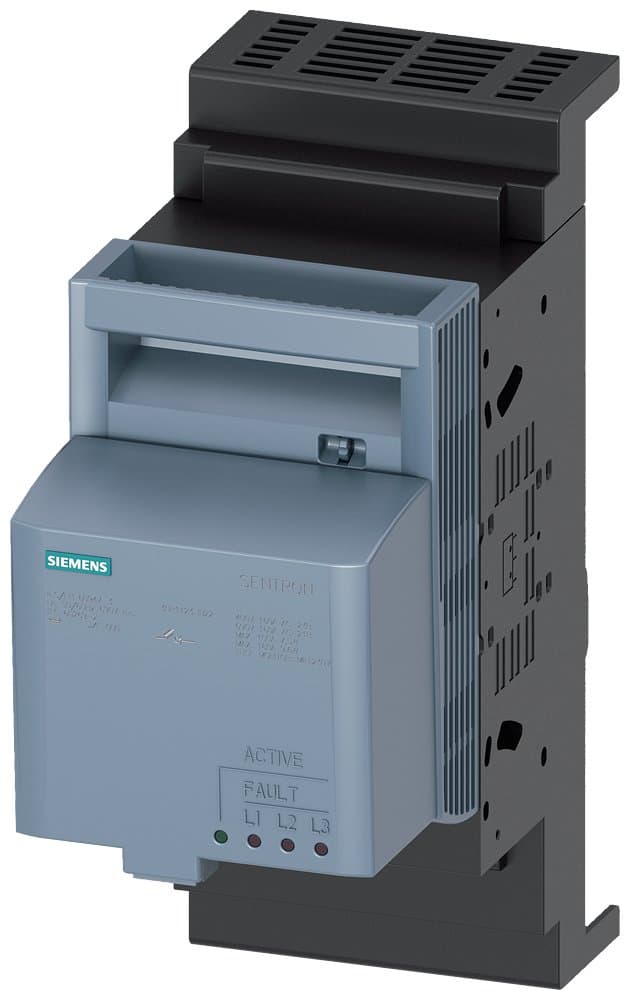

3NP1123-1JB22
Selling Points
- 1Enhanced Safety Features: Protects users from electric shock with permanent switch-on and switch-off capabilities under load.
- 2High Capacity: Handles up to 160A, making it suitable for demanding electrical installations.
- 3Versatile Mounting Options: Compatible with floor mounting, standard mounting rails, and busbar systems.
- 4Configurable for Specific Needs: Utilize the configurator to tailor the switch disconnector to your application's requirements.
- 5Comprehensive Certification: Meets IEC 60947-3 and UL 508 standards for reliability and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 000, 40mm busbar system, box terminal, 3P, electronic EFM10 fuse monitoring, suitable for Rittal systems with base | Other | Suitable for Rittal systems with base |
Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Mounting Type | 40mm Busbar System |
Fuse Rating | Size:000 | Terminal Type | Box Terminal |
Rated Current In(A) | 160 | Specifications | 3NP112【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1123-1JB22 |
Specifications may be subject to change without notice
