Product Model

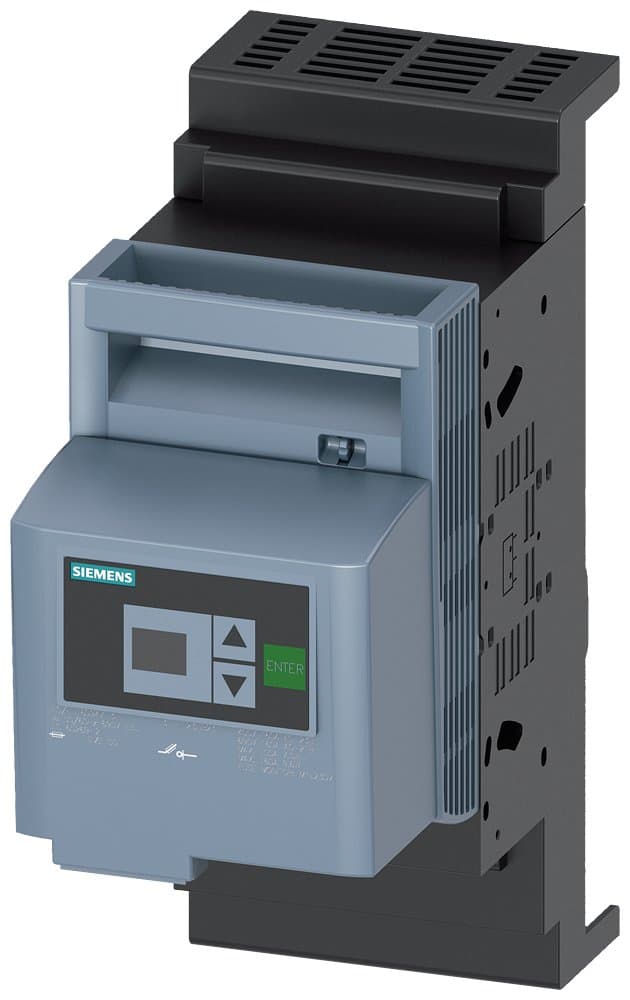

3NP1123-1JB23
Selling Points
- 1Modular Design for Maximum Flexibility
- 2Suitable for Floor Mounting and Standard Mounting Rails
- 3Universal Accessories for Customization
- 43-Pole, NH000 Fuse, 160 A Amperage Rating
- 5Designed for Rittal Busbar Systems and Siemens Busbar System 8US 3
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 000, 40mm busbar system, box terminal, 3P, electronic EFM20 fuse monitoring, suitable for Rittal systems with base | Other | Suitable for Rittal systems with base |
Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Mounting Type | 40mm Busbar System |
Fuse Rating | Size:000 | Terminal Type | Box Terminal |
Rated Current In(A) | 160 | Specifications | 3NP112【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | EAR99 | AL | N |
Model Number | 3NP1123-1JB23 |
Specifications may be subject to change without notice
