Product Model

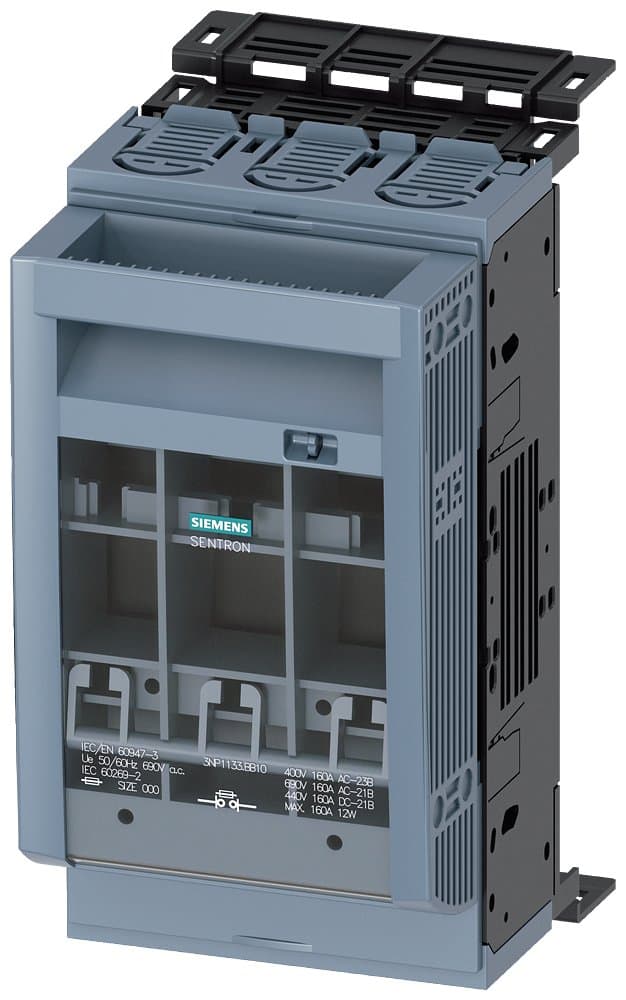

3NP1133-1BB10
Selling Points
- 13-pole configuration for versatile applications
- 2160A maximum current rating for high-capacity use
- 3Designed for busbar systems with 40 mm width
- 4Flat terminal connection for easy installation
- 5Comprehensive portfolio from a trusted brand
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V): | 440 | AC Rated Voltage(V): | 690 |
Insulation Voltage(V): | 1000 | Number of Poles: | 3P |
Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, flat connection, 3P, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others: | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Installation Type: | 40mm Busbar System | Fuse Rating: | Size: 00/000 |
Terminal Type: | Flat Connection | Rated Current In(A): | 160 |
Specifications: | 3NP11【160A】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | 9N9999 |
AL | N | Model Number | 3NP1133-1BB10 |
Specifications may be subject to change without notice
