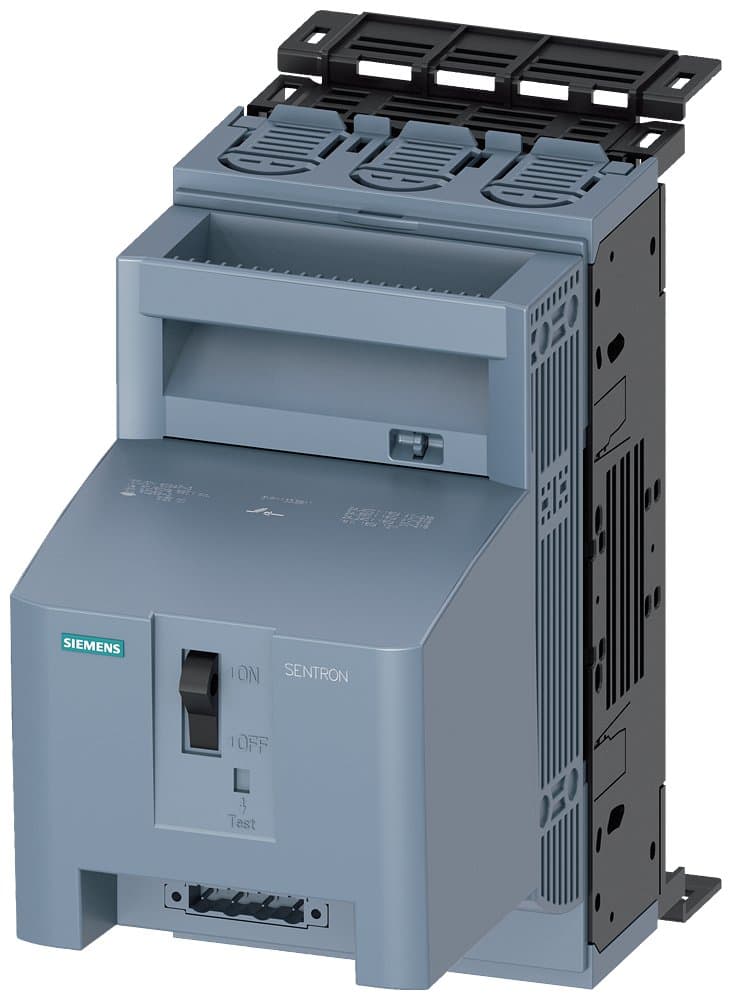

Product Model
3NP1133-1BB11
Selling Points
- 1High Current Rating: Handles up to 160 A, ensuring robust power distribution.
- 2Safe Operation: Permits permanent switch-on and switch-off under load, protecting against electric shock.
- 3Versatile Mounting: Compatible with floor mounting, standard mounting rails, and busbar systems.
- 4Durable Design: Constructed with high-quality materials for long-lasting performance.
- 5Compliance with Standards: Meets IEC 60947-3 and UL standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, flat connection, 3P, electromechanical fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Fuse Monitoring | Electromechanical Fuse Monitoring | Installation Type | 40mm Busbar System |
Fuse Rating | Size: 00/000 | Terminal Type | Flat Connection |
Rated Current In(A) | 160 | Specifications | 3NP113【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3NP1133-1BB11 |
Specifications may be subject to change without notice
