Product Model

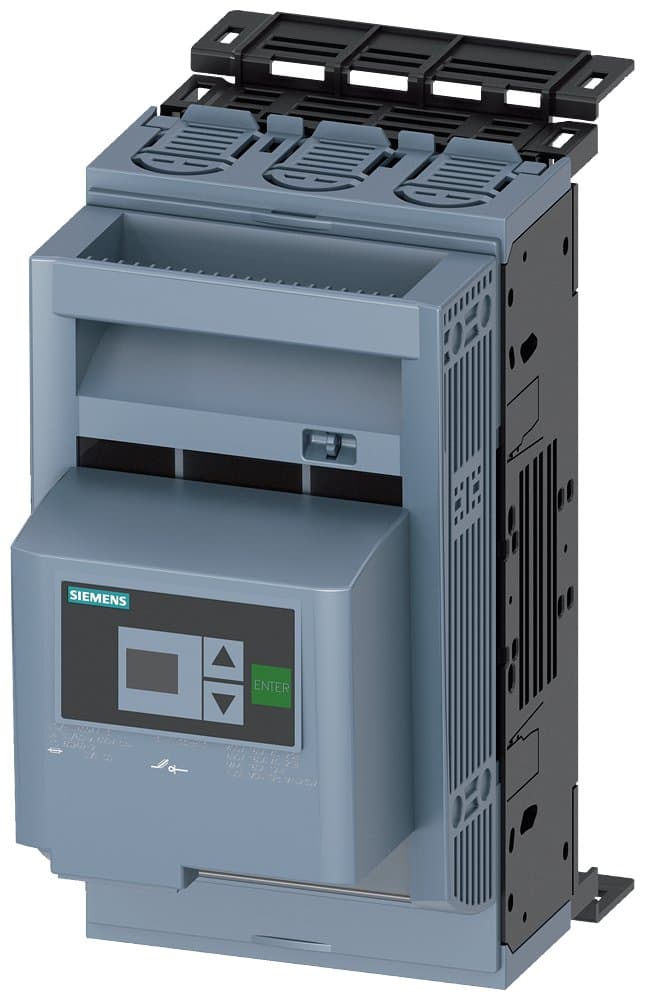

3NP1133-1BB13
Selling Points
- 1Provides reliable overload and short-circuit protection for personnel and plants.
- 2Features a reach-round and touch protection system to prevent electrical shock.
- 3Suitable for floor mounting, standard mounting rail, and Siemens busbar system.
- 4Includes electronic fuse monitoring with line monitoring for efficient operation.
- 5Designed with a modular structure and universal accessories for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 440 | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, flat connection, 3P, electronic EFM20 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Other | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 40mm Busbar System |
Fuse Rating | Size: 00/000 | Terminal Type | Flat Connection |
Rated Current In(A) | 160 | Specification | 3NP113【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3NP1133-1BB13 |
Specifications may be subject to change without notice
