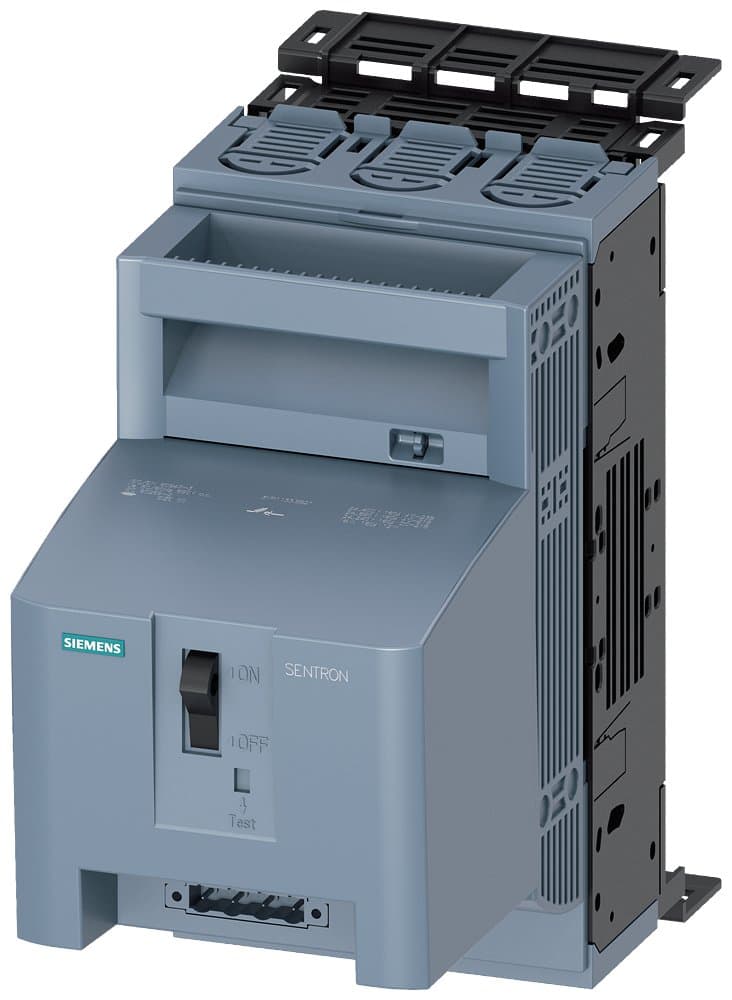

Product Model
3NP1133-1BB21
Selling Points
- 1Protects users from electric shock with permanent switch-on and switch-off under load.
- 2Available for floor mounting, mounting on standard rails, and front mounting in panel doors.
- 3Supports rated currents from 16 to 2000 A, making it suitable for various electrical applications.
- 4Meets IEC 60947-3 and UL 508/UL60947-4-1 standards for reliability and safety.
- 5Designed with durable materials to ensure long-lasting performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, box terminal, 3P, electromechanical fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Other | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Fuse Monitoring | Electromechanical Fuse Monitoring | Mounting Type | 40mm Busbar System |
Fuse Rating | Size: 00/000 | Terminal Type | Box Terminal |
Rated Current In(A) | 160 | Specifications | 3NP11【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1133-1BB21 |
Specifications may be subject to change without notice
