Product Model

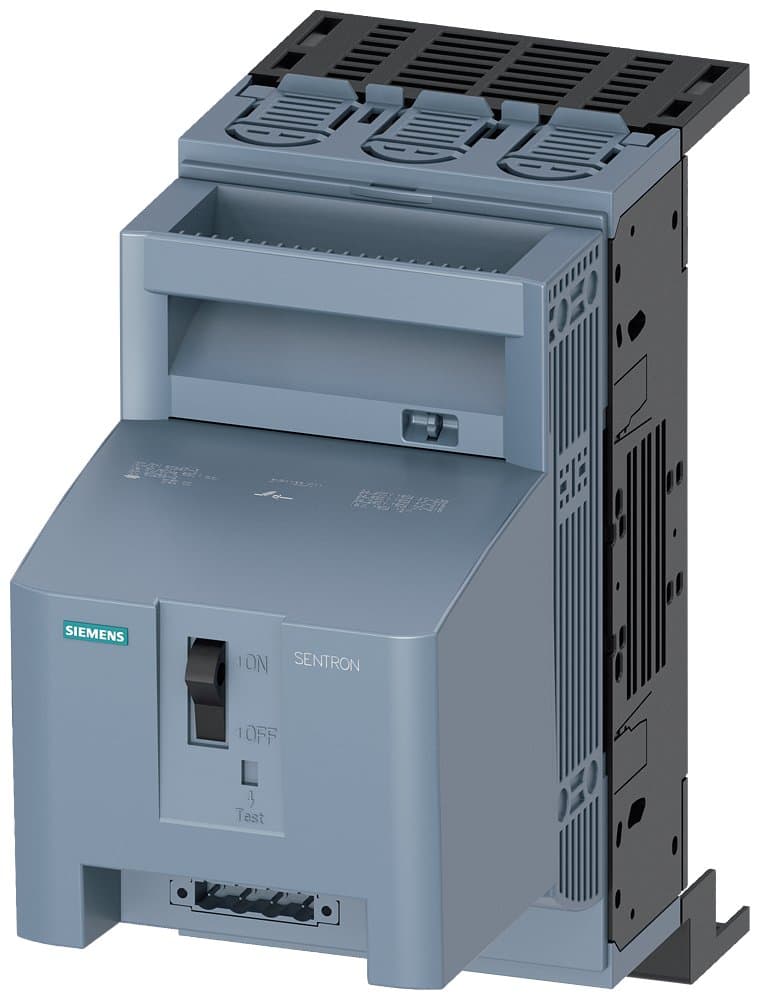

3NP1133-1JC11
Selling Points
- 1Ensures reliable and safe operation by continuously monitoring the fuse.
- 2Protects against electrical surges with a rated surge voltage resistance of 8 kV.
- 3Suitable for Rittal busbar systems with a flat terminal and compact dimensions.
- 4Handles operational currents up to 160 A at various voltage ratings.
- 5Built to withstand mechanical service life of 2,000 operating cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, Rated current 160A, Size 00/000, 60mm Busbar System, Flat Connection, 3P, Electromechanical Fuse Monitoring, Suitable for Rittal Riline60 system with base | Others | Suitable for Rittal Riline60 system with base |
Fuse Monitoring | Electromechanical Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Specification | Size: 00/000 | Terminal Type | Flat Connection |
Rated Current In(A) | 160 | Specifications | 3NP11【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1133-1JC11 |
Specifications may be subject to change without notice
