Product Model

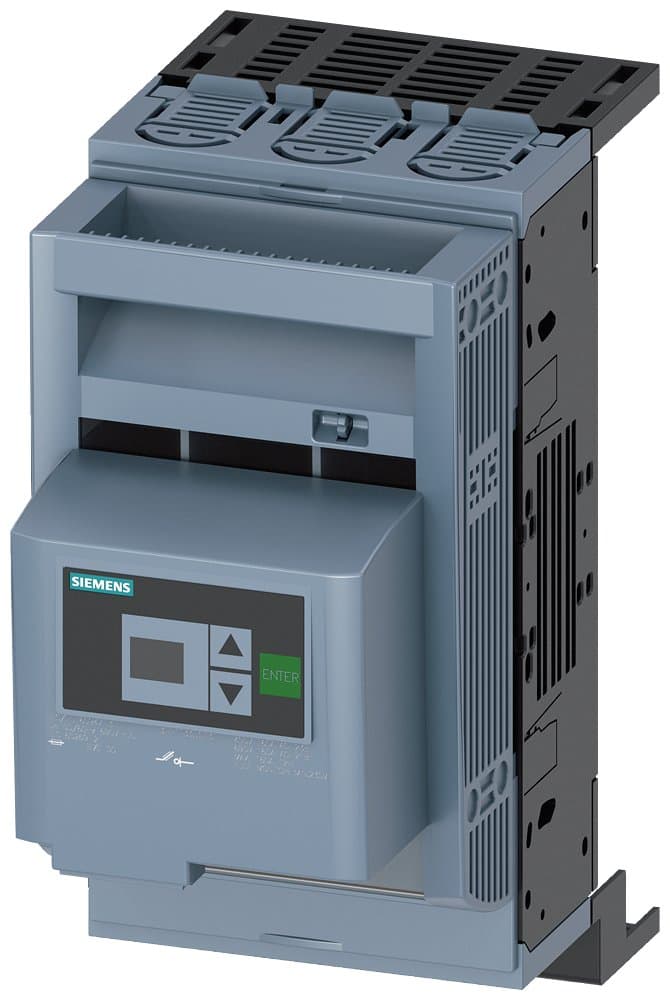

3NP1133-1JC13
Selling Points
- 1Protects users from electric shock with permanent switch-on and switch-off capabilities.
- 2Supports up to 33 kA selection according to utilization category AC max.
- 3Available for floor mounting, standard mounting rail, and front mounting.
- 4Offers manual and remote-controllable operation for flexibility.
- 5Meets IEC 60947-3 and UL 508 standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 00/000, 60mm busbar system, flat connection, 3P, electronic EFM20 fuse monitoring, suitable for Rittal Riline60 system with base | Other | Suitable for Rittal Riline60 system with base |
Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Rating | Size: 00/000 | Terminal Type | Flat Connection |
Rated Current In(A) | 160 | Specifications | 3NP11【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1133-1JC13 |
Specifications may be subject to change without notice
