Product Model

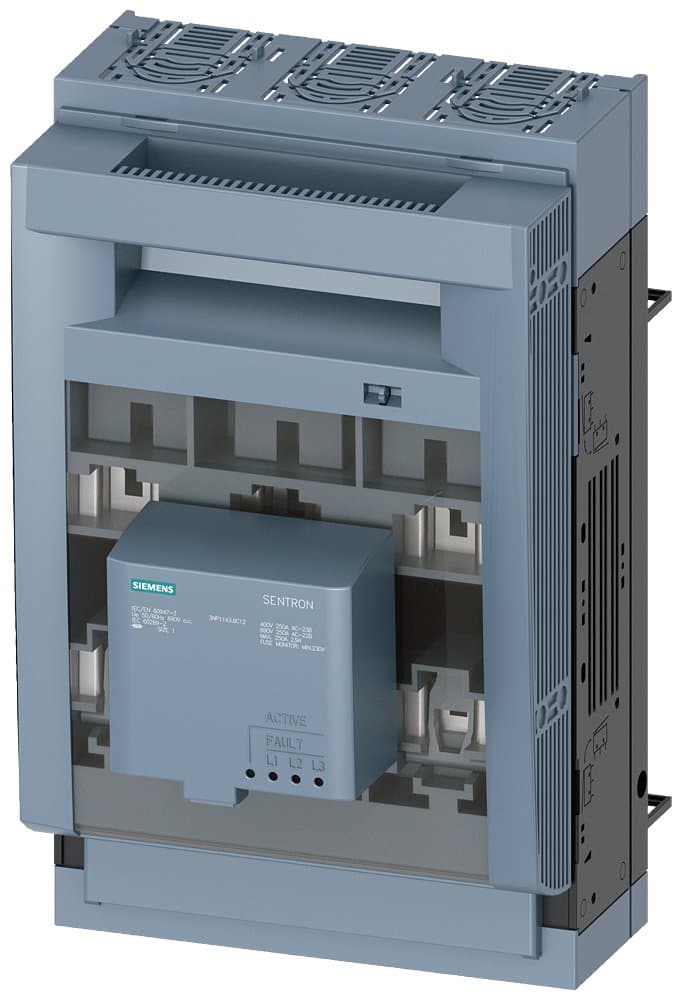

3NP1143-1BC12
Selling Points
- 1Handles up to 250 A for reliable power distribution.
- 2Equipped with electronic EFM10 for real-time monitoring and protection.
- 3Suitable for 60 mm busbar systems, ensuring efficient use of space.
- 4Features a robust cover level of 32/70 mm for enhanced protection.
- 5Compatible with flat terminal connections and various mounting configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 440 | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 250A, Size 0/1, 60mm busbar system, flat connection, 3P, electronic EFM10 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Mounting Type | 60mm Busbar System |
Fuse Rating | Size: 0/1 | Terminal Type | Flat Connection |
Rated Current In(A) | 250 | Specifications | 3NP114【250A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1143-1BC12 |
Specifications may be subject to change without notice
