Product Model

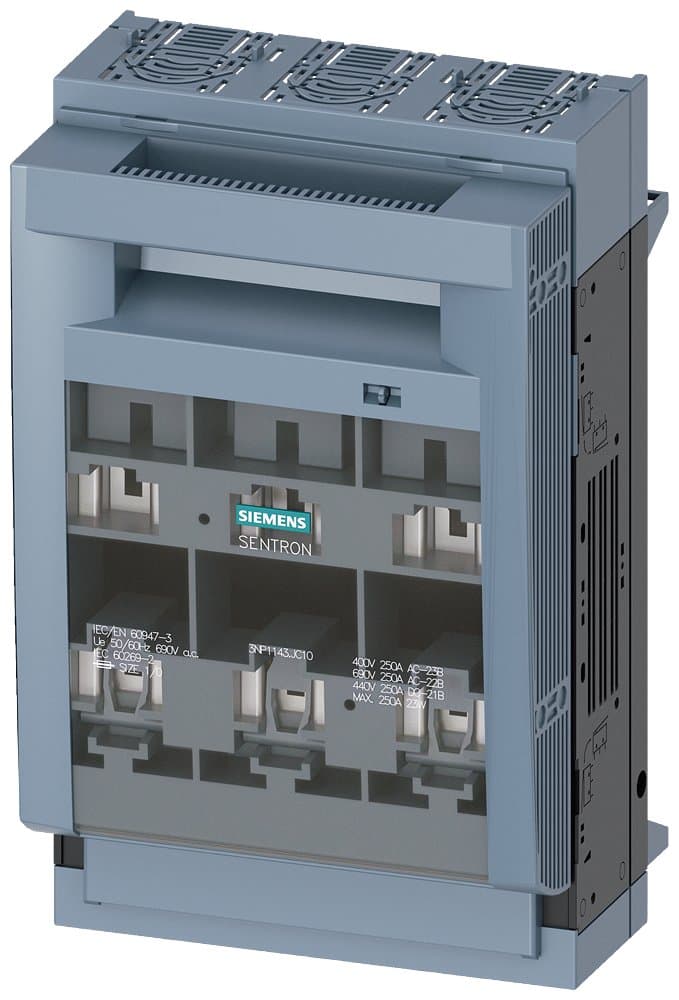

3NP1143-1JC10
Selling Points
- 1High-quality fuse switch disconnector designed for Rittal busbar systems.
- 23-pole, 250 A capacity, ensuring robust electrical performance.
- 3NH1 terminal type for easy installation and connectivity.
- 4Covered by a 12-month warranty from WiAutomation for peace of mind.
- 5Suitable for a variety of industrial applications requiring reliable electrical switching.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, Rated current 250A, Size 0/1, 60mm Busbar System, Flat Connection, 3P, Suitable for Rittal Riline60 system with base | Others | Suitable for Rittal Riline60 system with base |
Installation Type | 60mm Busbar System | Fuse Rating | Size: 0/1 |
Terminal Type | Flat Connection | Rated Current In(A) | 250 |
Specifications | 3NP114【250A】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | 9N9999 |
AL | N | Model Number | 3NP1143-1JC10 |
Specifications may be subject to change without notice
