Product Model

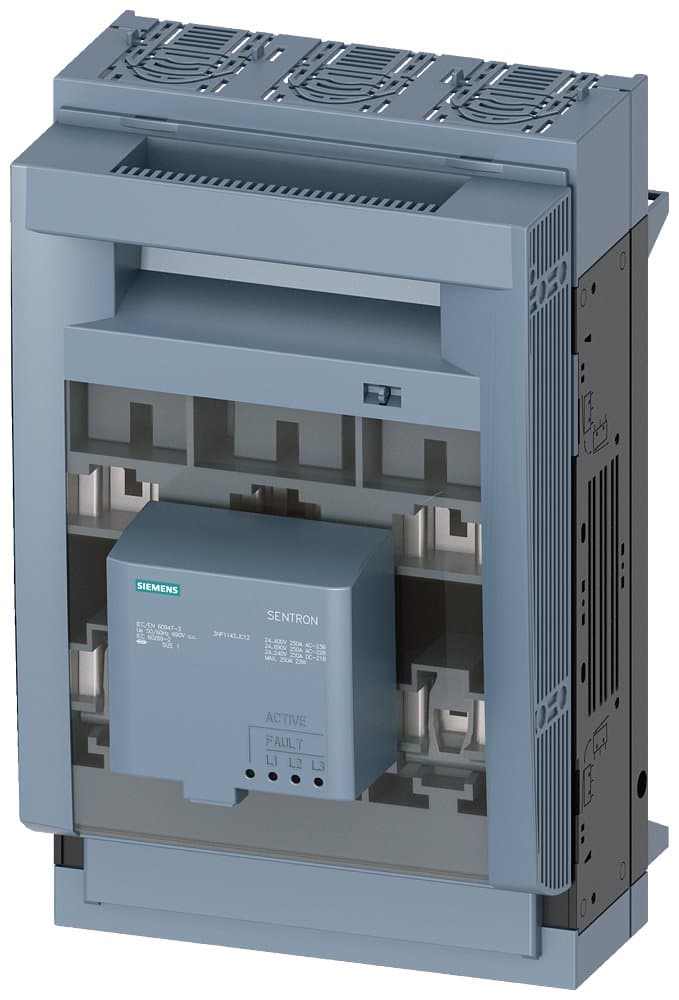

3NP1143-1JC12
Selling Points
- 1Designed for Rittal busbar systems with a 250 A capacity.
- 2Ensures continuous monitoring of the fuse for enhanced safety.
- 3Suitable for three-phase electrical installations.
- 4Flat terminal for efficient space utilization in electrical panels.
- 5Meets DIN VDE 0100-200 and other relevant electrical safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 250A, Size 0/1, 60mm busbar system, flat connection, 3P, electronic EFM10 fuse monitoring, suitable for Rittal Riline60 system with base | Other | Suitable for Rittal Riline60 system with base |
Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Rating | Size: 0/1 | Terminal Type | Flat Connection |
Rated Current In(A) | 250 | Specifications | 3NP114【250A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1143-1JC12 |
Specifications may be subject to change without notice
