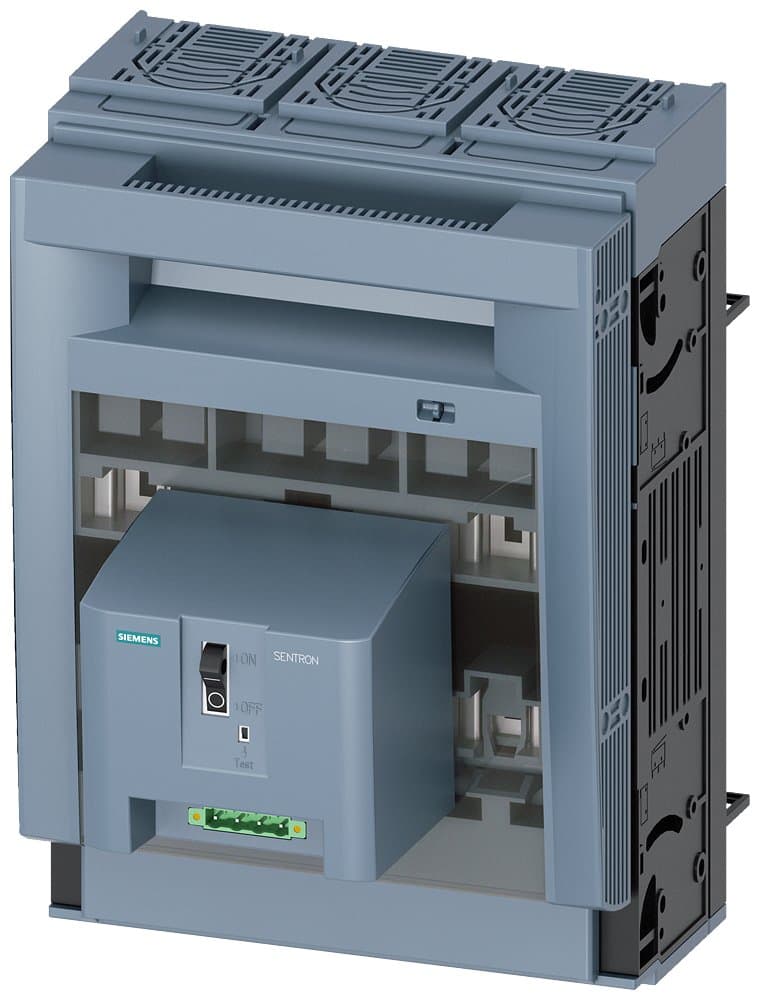

Product Model
3NP1153-1BC11
Selling Points
- 1High-Quality Electrical Solution: Designed for reliable and safe electrical installations.
- 23-Pole Configuration: Suitable for busbar systems with a 3-pole configuration.
- 3400 A Capacity: Handles currents up to 400 A, ensuring robust performance.
- 4NH2 Terminal: Compatible with NH2 terminals for seamless integration.
- 5Compact Design: Compact design allows for efficient use in space-limited areas.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 440 | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 400A, Size 1/2, 60mm busbar system, flat connection, 3P, electromechanical fuse monitoring, 32/70mm cover with contact protection, suitable for busbar systems and Rittal systems without base | Other | 32/70mm cover with contact protection, suitable for busbar systems and Rittal systems without base |
Fuse Monitoring | Electromechanical Fuse Monitoring | Mounting Type | 60mm Busbar System |
Fuse Rating | Size: 1/2 | Terminal Type | Flat Connection |
Rated Current In(A) | 400 | Specifications | 3NP115【400A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1153-1BC11 |
Specifications may be subject to change without notice
