Product Model

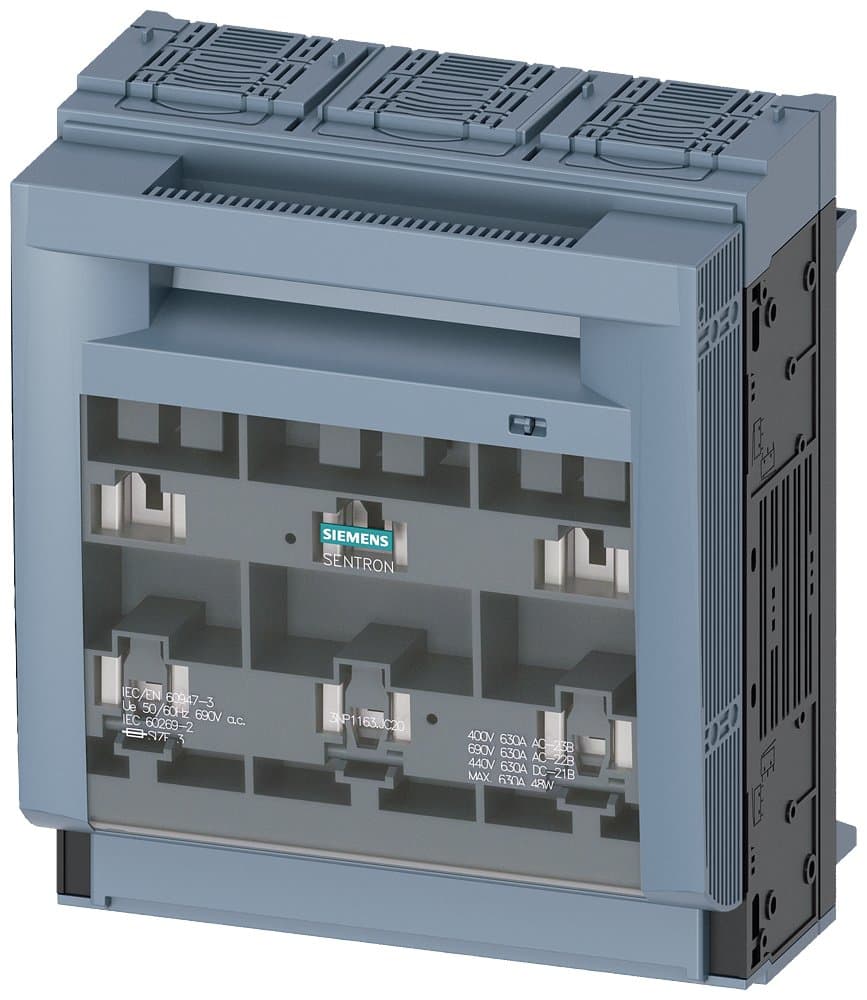

3NP1163-1JC20
Selling Points
- 1High current capacity up to 630 A.
- 2Compact design for space-efficient installation.
- 3Compatible with Rittal 60 mm busbar systems.
- 4Box terminal connection for secure connections.
- 5Enhanced safety with electronic fuse monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, Rated current 630A, Size 2/3, 60mm Busbar System, Box Terminal, 3P, Suitable for Rittal Riline60 system with base | Others | Suitable for Rittal Riline60 system with base |
Installation Type | 60mm Busbar System | Fuse Rating | Size:2/3 |
Terminal Type | Box Terminal | Rated Current In(A) | 630 |
Specifications | 3NP116【630】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | 9N9999 |
AL | N | Model Number | 3NP1163-1JC20 |
Specifications may be subject to change without notice
