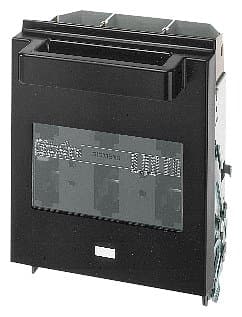

Product Model
3NP5260-0CA10
Selling Points
- 1Modular design for maximum flexibility.
- 2Suitable for floor mounting, standard mounting rail, and Siemens busbar system 8US 3.
- 3High-speed closing mechanism ensures quick operation.
- 43-pole, NH1, 250 A rating for reliable performance.
- 5Includes screw terminals for easy installation and connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 440 | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 690 | Description | 3NP5, rated current 250A, Size 0/1, surface mount flat connection 3P with high-speed closing function, 1NO+1NC, |
Mounting Type: | Surface mount | Fuse Rating: | Size: 0/1 |
Terminal Type: | Flat connection | Others: | With high-speed closing function, 1NO+1NC |
Number of Poles: | 3P | In(A): | 250 |
Specifications: | 3NP52【250A】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3NP5260-0CA10 |
Specifications may be subject to change without notice
