Product Model

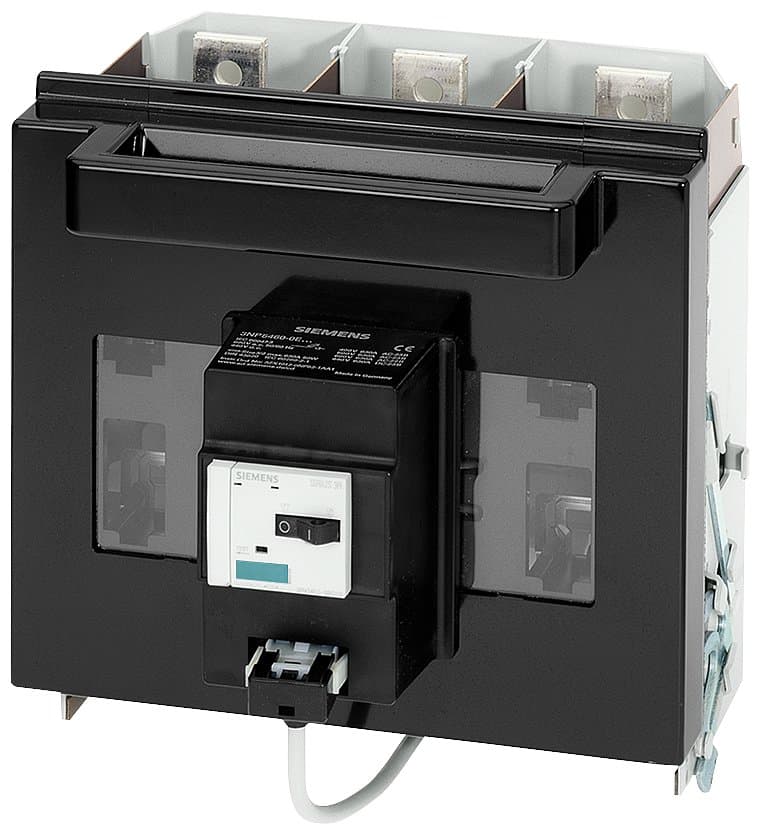

3NP5460-0EA86
Selling Points
- 1High-speed closing functionality ensures quick and reliable operation.
- 2630A max current rating supports heavy-duty applications.
- 33-pole design with NH3 fuse-link for comprehensive circuit protection.
- 4Floor mounting with screw terminal for easy installation.
- 5Cover handle operator for convenient manual control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 440 | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 690 | Description | 3NP5, rated current 630A, Size 2/3, surface mount flat connection 3PSIRUS circuit breaker electromechanical fuse monitoring with high-speed closing function, switch / 1NO+1NC, circuit breaker / 1NO+1NC, |
Fuse Monitoring: | SIRUS circuit breaker electromechanical fuse monitoring | Mounting Type: | Surface mount |
Fuse Rating: | Size: 2/3 | Terminal Type: | Flat connection |
Others: | With high-speed closing function, switch / 1NO+1NC circuit breaker / 1NO+1NC | Poles: | 3P |
In(A): | 630 | Specifications | 3NP54【630A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3NP5460-0EA86 |
Specifications may be subject to change without notice
