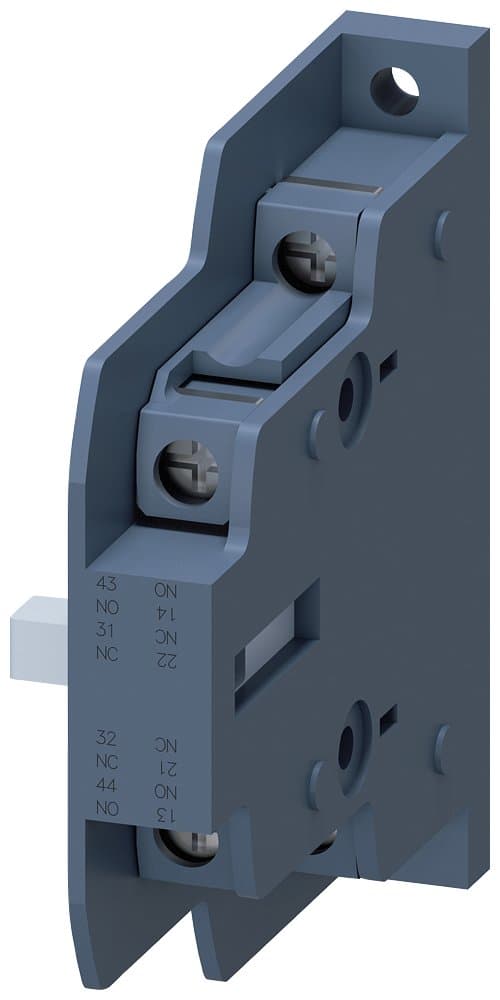

Product Model
3RH1981-1DA11
Selling Points
- 1High Insulation Voltage: 600V AC rated value with surge voltage resistance up to 6kV.
- 2Reliable Contacts: 1 NO and 1 NC contact with screw terminals for secure connections.
- 3Operational Current: 16A at 24V and 230V AC, 6A at 24V DC, and 1.5A at 400V AC.
- 4Long Service Life: Mechanical service life of 1,000,000 operating cycles and electrical endurance of 250,000 cycles at 230V AC.
- 5Wide Temperature Range: Operates between -25°C to +55°C during operation and -40°C to +80°C during storage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Packaging Quantity | 1 | Quantity Unit | 1 Piece |
Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
