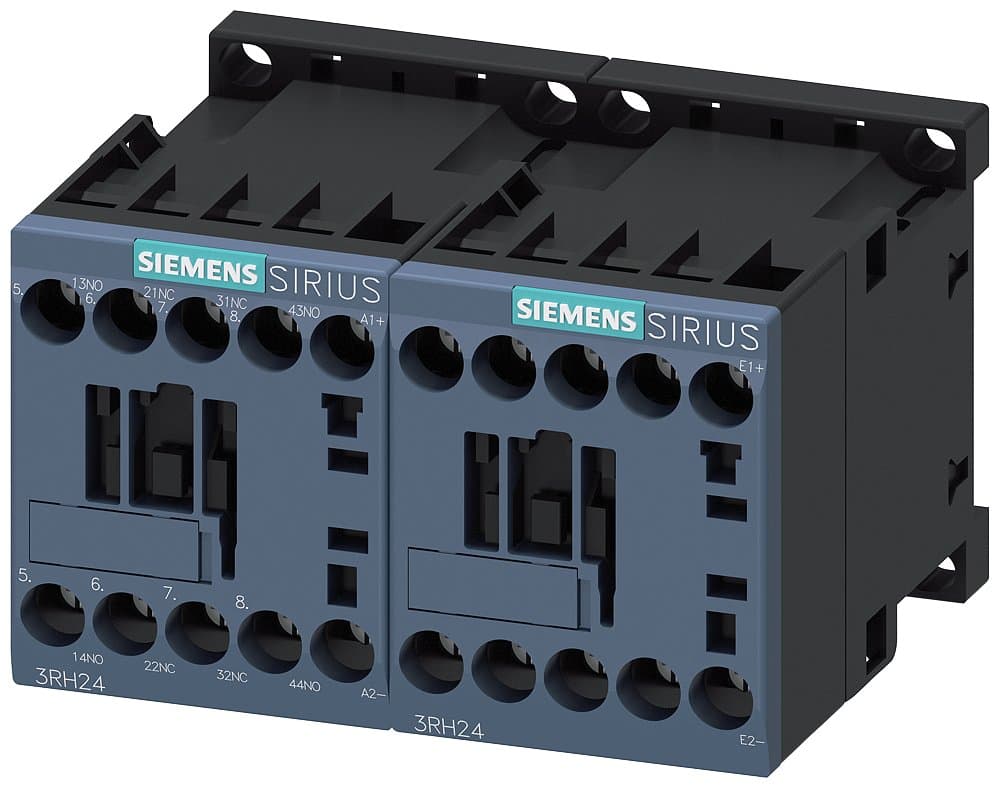

Product Model
3RH2422-1XF40-0LA2
Selling Points
- 1Designed for railway applications with a mechanical service life of up to 30 million switching cycles.
- 2Finger-safe design and protection against electrical shock with IP20 rating.
- 3Operates at 72-125 V DC with a control supply voltage range of 0.7 to 1.25 Us.
- 4Includes an integrated varistor for surge voltage resistance rated at 6 kV.
- 5Suitable for PLC outputs and can be mounted on a 35 mm standard mounting rail with +/-180° rotation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model | 3RH2422-1XF40-0LA2 |
Specifications may be subject to change without notice
