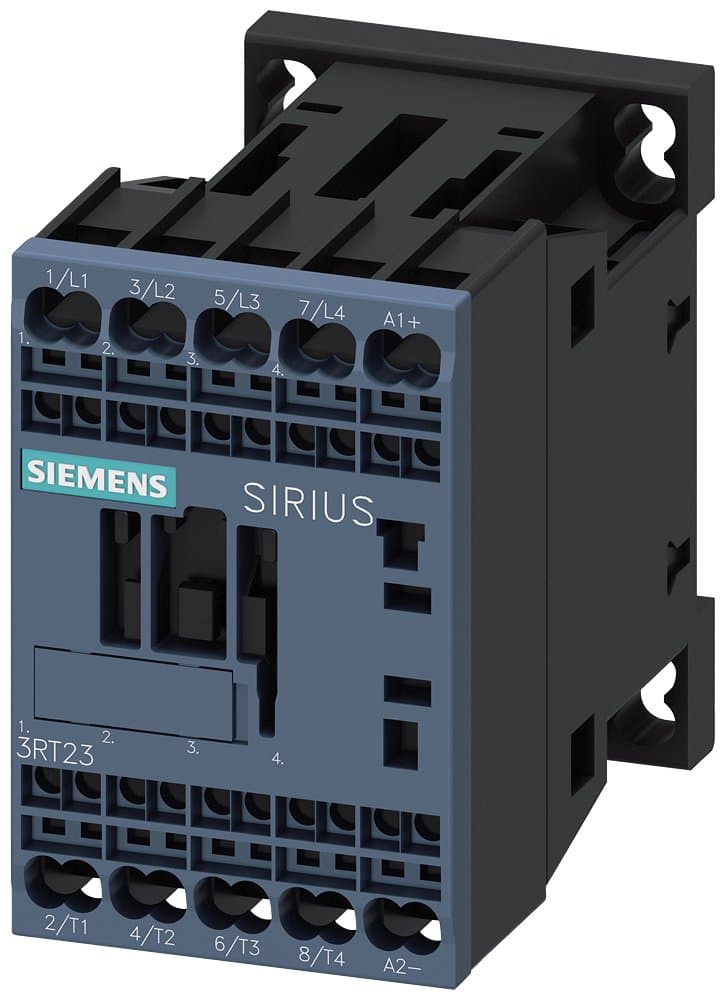

Product Model
3RT2317-2XF40-0LA2
Selling Points
- 1Designed for millions of operating cycles with robust insulation and shock resistance.
- 2Suitable for AC, DC, and AC/DC operations up to 690 V.
- 3Protective separation between coil and main contacts according to IEC 60947-1.
- 4Screw/spring-type terminals for convenient mounting on vertical surfaces.
- 5Finger-safe for vertical touching from the front with cover, ensuring operator safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Main Contact Contact Form | 4NO | Wiring Method | Spring Terminal |
Auxiliary Contacts | None | Coil Frequency | DC |
Coil Power Supply | DC | Number of Poles | 4P |
Rated Current AC-3 | AC-1 22A | Specification | S00 |
Product Type | Four-pole Contactor | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model | 3RT2317-2XF40-0LA2 |
Specifications may be subject to change without notice
