Product Model

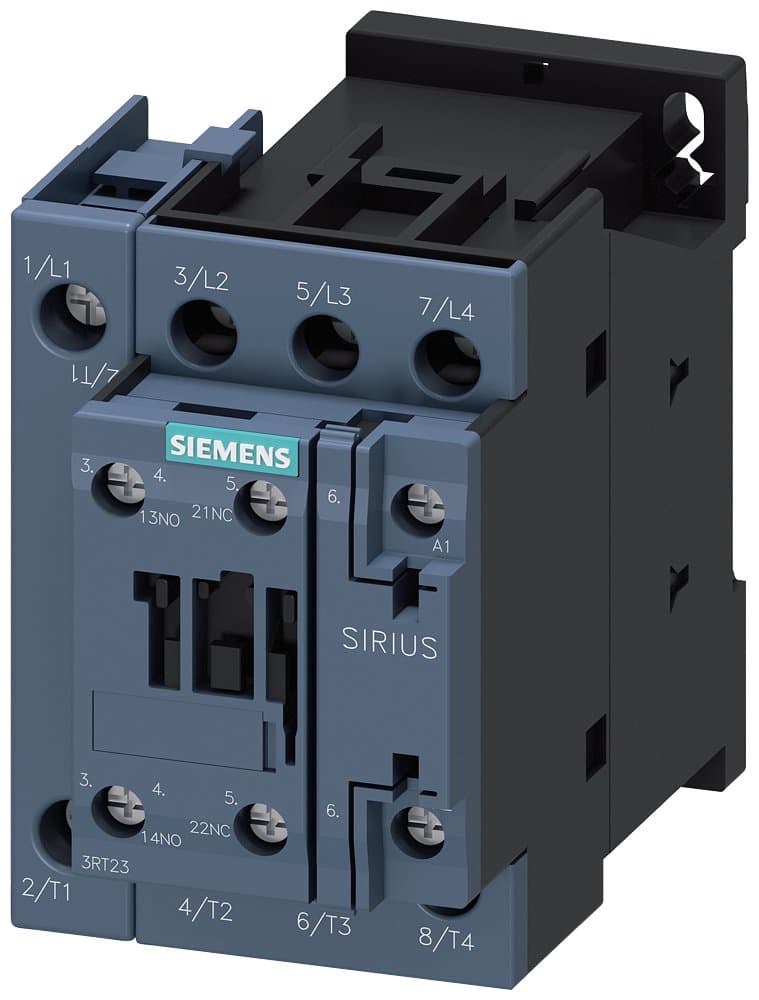

3RT2325-1AV00
Selling Points
- 1High-performance AC-1 contactor with 35A, 400V, and 4-pole configurations.
- 2Reliable operation in ambient temperatures from -25°C to +60°C.
- 3Compact size: S0, suitable for various industrial applications.
- 4Includes auxiliary contacts: 1 NO + 1 NC for enhanced control.
- 5Meets stringent safety standards with IP20 touch protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Main Contact Contact Configuration | 4NO | Wiring Method | Screw Terminal |
Auxiliary Contacts | 1NO1NC | Coil Frequency | 50HZ |
Coil Power Supply | AC | Number of Poles | 4P |
Rated Current AC-3 | AC-1 35A | Specification | S0 |
Product Type | Four-pole Contactor | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3RT2325-1AV00 |
Specifications may be subject to change without notice
