Product Model

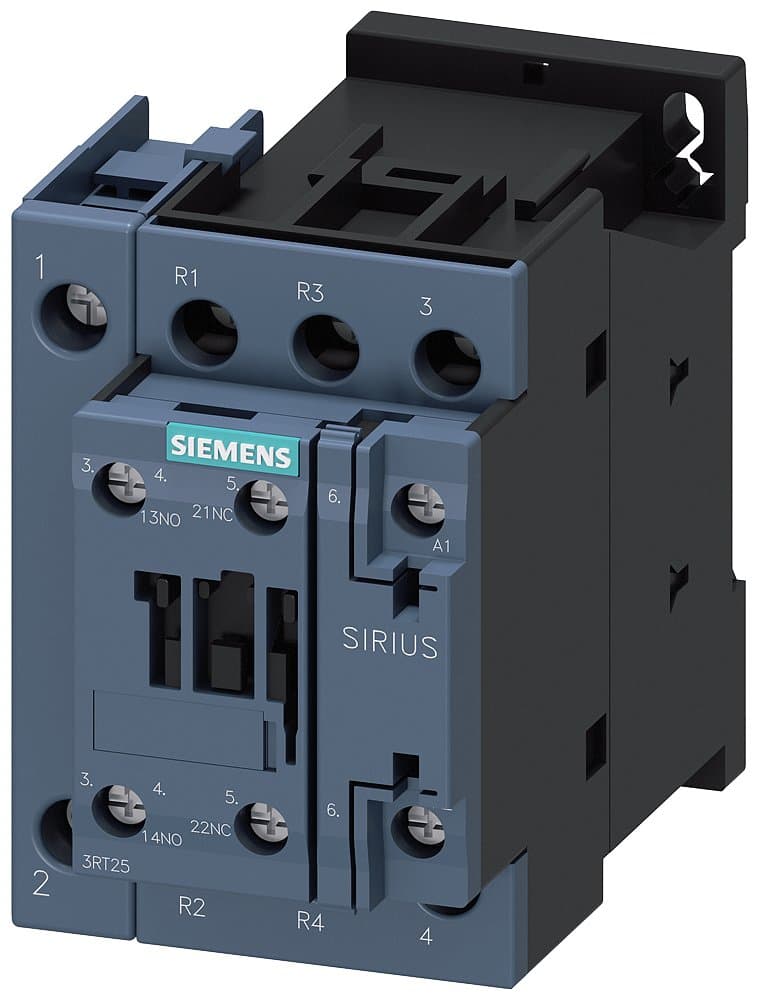

3RT2526-1AL20
Selling Points
- 1Designed for AC-3 applications, handling up to 11 kW at 400 V.
- 2Ensures consistent performance with 2 NO + 2 NC main contacts and 1 NO + 1 NC auxiliary contacts.
- 3Suitable for various industrial control systems, including motor switching and load feeder applications.
- 4Compact size S0 with screw terminal connections for easy installation.
- 5Compliant with RoHS directive since 2009 and backed by a 3-year warranty for peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Main Contact Configuration | 2NO+2NC | Wiring Method | Screw Terminal |
Auxiliary Contacts | 1NO1NC | Coil Frequency | 50/60HZ |
Coil Power Supply | AC | Number of Poles | 4P |
Rated Current AC-3 | 25A | Specification | S0 |
Product Type | 4-pole Contactor | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3RT2526-1AL20 |
Specifications may be subject to change without notice
