Product Model

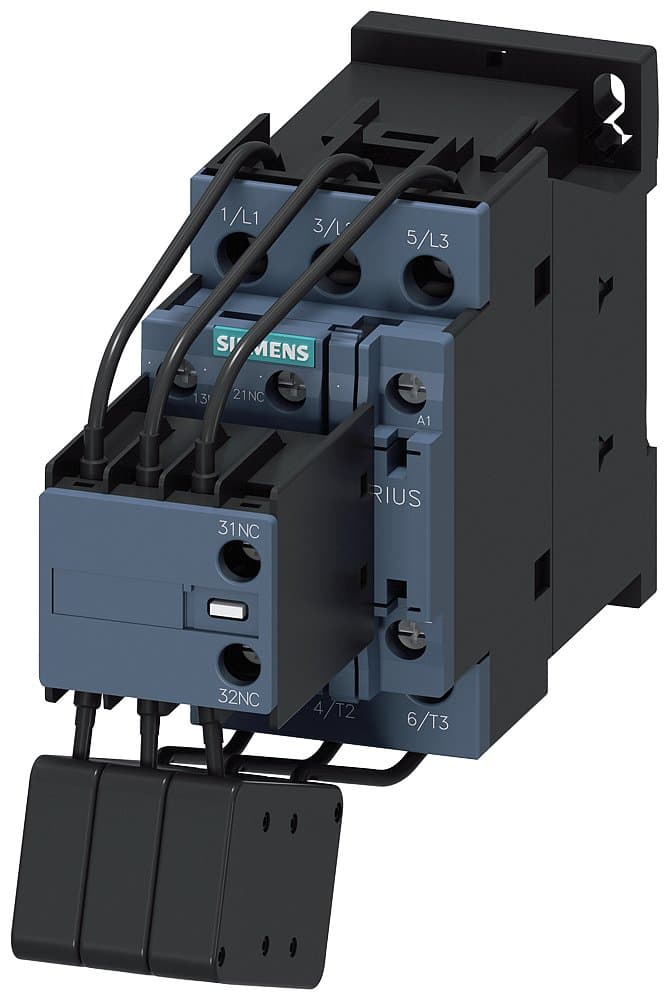

3RT2626-1AL25
Selling Points
- 1High Power Handling: Handles up to 20 kVAr for efficient capacitive load management.
- 2Versatile Design: Compatible with 230 V AC and 50/60 Hz frequencies, ensuring broad application flexibility.
- 3Robust Construction: Built with durable materials and a reliable screw terminal design.
- 4Comprehensive Support: Includes auxiliary contacts (1 NO + 2 NC) for enhanced functionality.
- 5Compliance with Regulations: Meets RoHS compliance since May 1, 2014, ensuring environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Main Contact Configuration | 3NO | Wiring Method | Screw Terminal |
Auxiliary Contacts | 1NO2NC | Coil Frequency | 50/60 HZ |
Coil Power Supply | AC | Number of Poles | 3P |
Rated Current AC-3 | AC-6b 20 kVAr | Specification | S0 |
Product Type | Capacitor Contactor | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3RT2626-1AL25 |
Specifications may be subject to change without notice
