Product Model

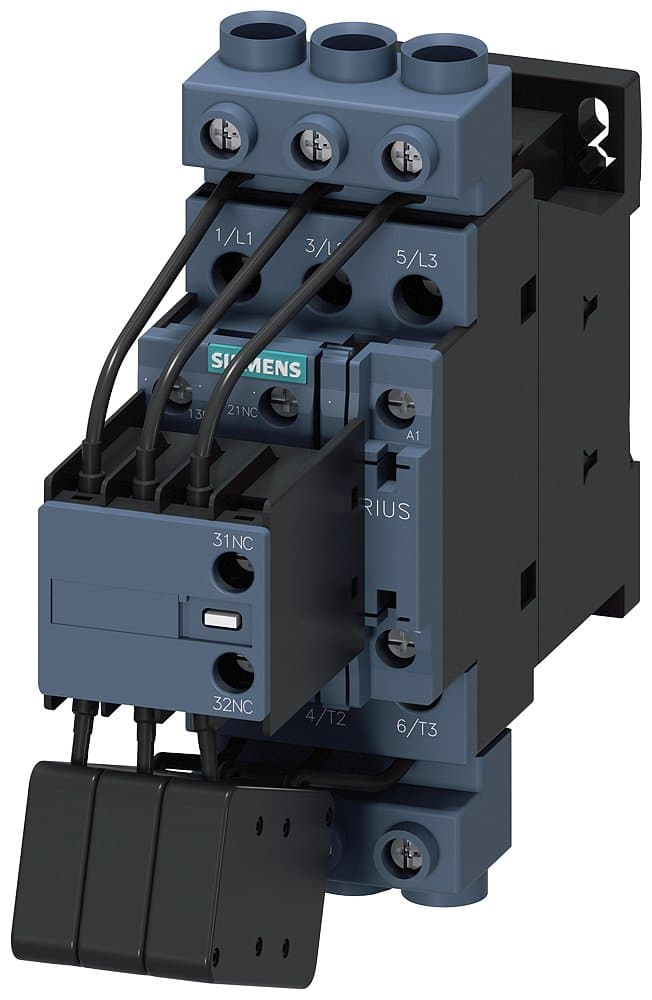

3RT2628-1AV05
Selling Points
- 1High Power Handling: Handles up to 33 kVAr for efficient capacitive load management.
- 2Robust Design: Constructed with durable materials for long mechanical service life (operating cycles).
- 3Versatile Mounting: Can be mounted on vertical surfaces with +/-180° rotation and +/-22.5° tilt.
- 4Advanced Safety Features: Includes 1 NO + 2 NC auxiliary contacts and meets IP20 touch protection standards.
- 5Compliance with Regulations: Compliant with RoHS directive since May 1, 2014, ensuring environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Main Contact Contact Form | 3NO | Wiring Method | Screw Terminal |
Auxiliary Contacts | 1NO2NC | Coil Frequency | 50 HZ |
Coil Power Supply | AC | Number of Poles | 3P |
Rated Current AC-3 | AC-6b 33 kVAr | Specification | S0 |
Product Type | Capacitor Contactor | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3RT2628-1AV05 |
Specifications may be subject to change without notice
