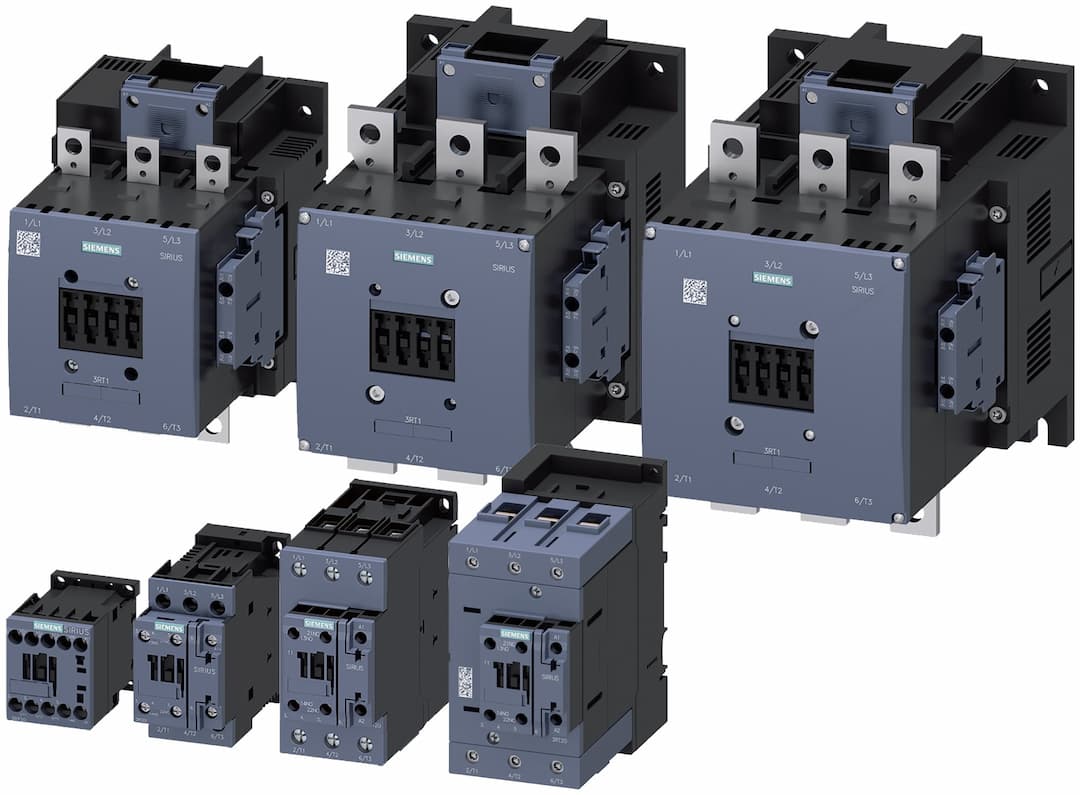

Product Model
3RT5054-6NF36
Selling Points
- 1High current rating up to 115 A at 400 V AC.
- 2Robust design with shock resistance up to 13.4g at 5 ms.
- 3Advanced communication module for PLC interface.
- 4Wide operating temperature range from -25°C to +60°C.
- 5Long mechanical service life of up to 10 million switching cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Main Contact Configuration | 3NO | Wiring Method | Screw Terminal |
Auxiliary Contacts | 2NO2NC | Coil Frequency | AC/DC |
Coil Power Supply | AC/DC | Number of Poles | 3P |
Rated Current AC-3 | 115A | Specification | S6 |
Product Type | Contactor | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model | 3RT5054-6NF36 |
Specifications may be subject to change without notice
