Product Model

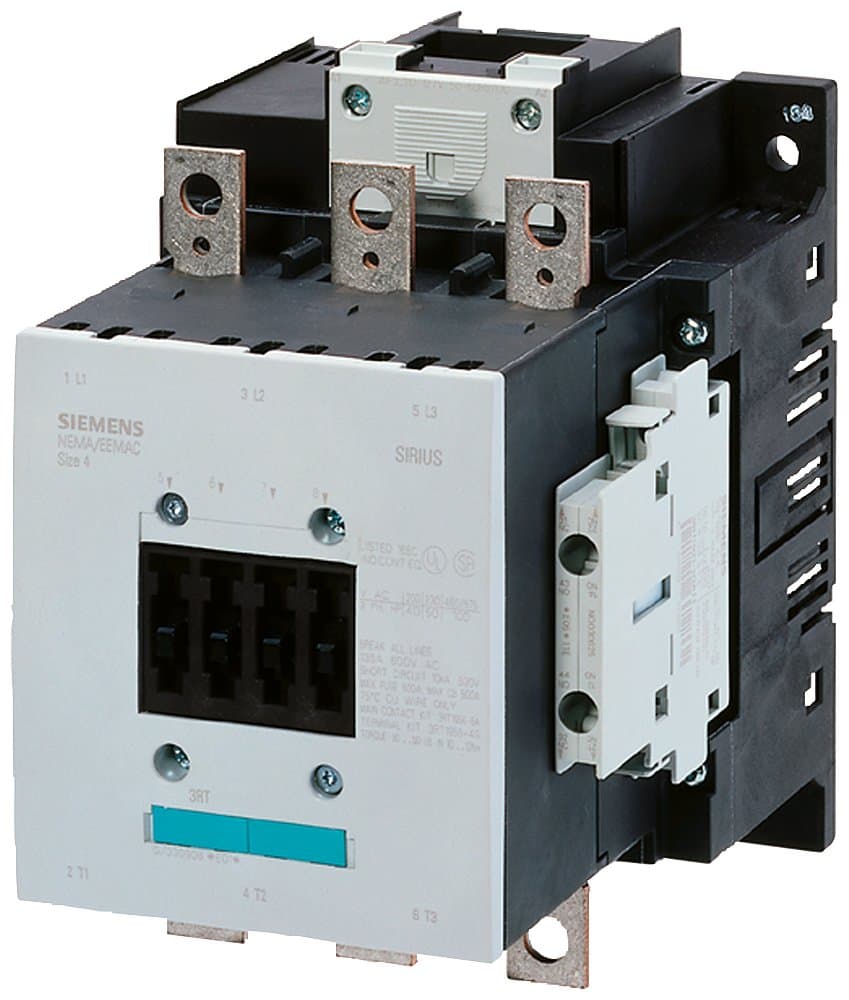

3RT5056-6AD36
Selling Points
- 1High-Power AC/DC Operation: Handles up to 90 kW at 400 V AC (50-60 Hz) and DC.
- 2Robust Connections: Features 2 NO + 2 NC auxiliary contacts and screw terminal connections.
- 3Versatile Application: Suitable for various industrial applications requiring reliable contactors.
- 4Compliance with Regulations: Meets RoHS and WEEE compliance standards since 2017.
- 5Reliable Performance: Active product with a long product lifecycle, ensuring consistent performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Main Contact Configuration | 3NO | Wiring Method | Screw Terminal |
Auxiliary Contacts | 2NO2NC | Coil Frequency | AC/DC |
Coil Power Supply | AC/DC | Number of Poles | 3P |
Rated Current AC-3 | 185A | Rating | S6 |
Product Type | Contactor | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model | 3RT5056-6AD36 |
Specifications may be subject to change without notice
