Product Model

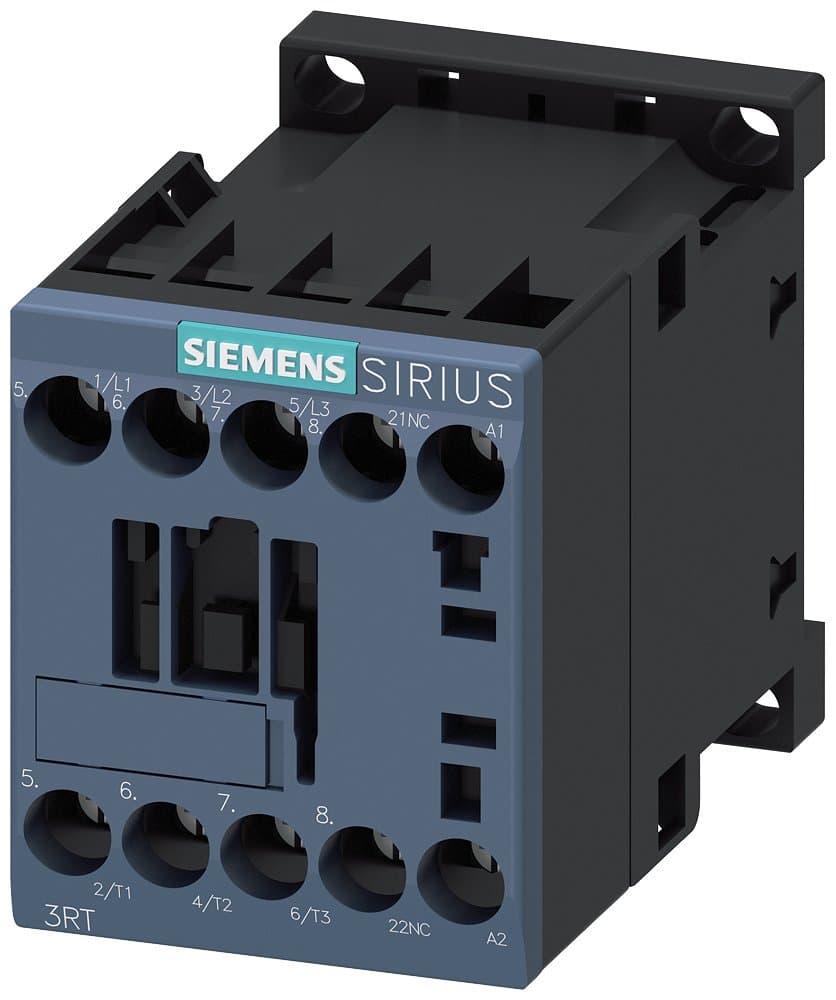

3RT6018-1AD02
Selling Points
- 1Handles up to 16 A at AC-3 and 22 A at AC-1.
- 2Compatible with DIN rail and screw mounting.
- 3Meets shock resistance standards with rectangular impulse at AC (7.3g/5 ms, 4.7g/10 ms).
- 4Mechanical service life of up to 30 million switching cycles.
- 5Includes front and side-mounted auxiliary contacts, thermal, and electronic overload relays for a complete motor starter setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Main Contact Contact Form | 3NO | Mechanical Life | 30 million operations (without auxiliary contacts on the main body) |
Operating Temperature Range | -25~+60℃ | Auxiliary Contact | 1NC |
Coil Voltage | AD0 | Coil Power Supply | 50/60Hz |
Coil Frequency | AC | Number of Poles | 3P |
Specification | S00 | Rated Current AC-3 | 16A |
Product Type | Contactor | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3RT6018-1AD02 |
Specifications may be subject to change without notice
