Product Model

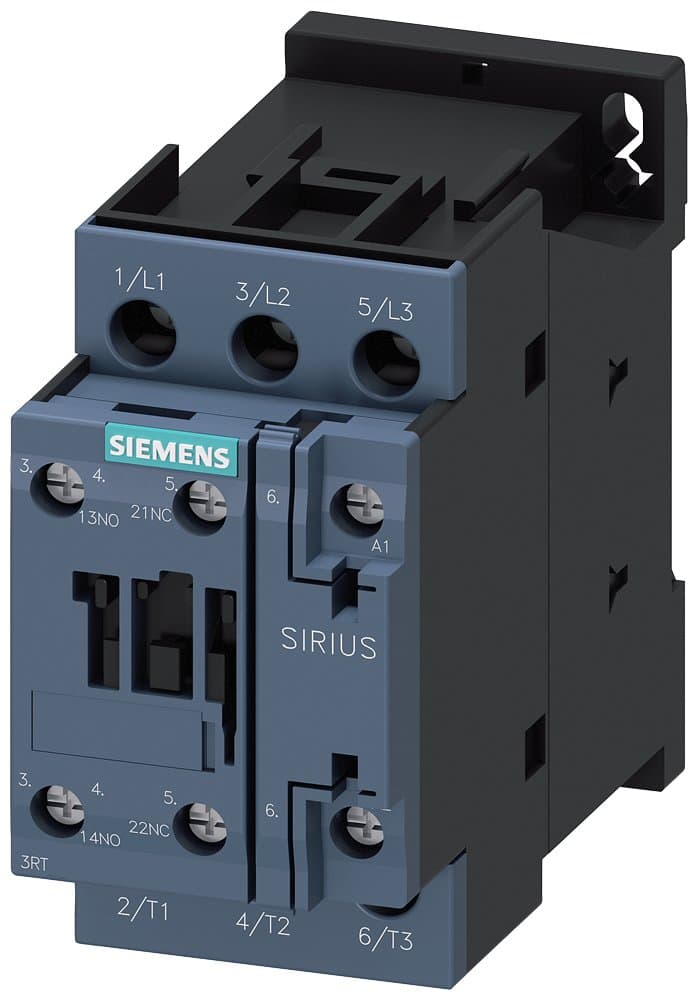

3RT6026-1AN20
Selling Points
- 1High Power Transmission: Handles up to 11 kW of power, making it suitable for demanding applications.
- 2Versatile Configuration: 3-pole configuration with auxiliary contacts (1 NO + 1 NC) for versatile control options.
- 3Reliable Performance: Built with robust components for reliable operation in various industrial settings.
- 4Compliant with Regulations: Meets RoHS directive since 2012 and complies with WEEE and REACH regulations.
- 5Compact Design: Compact size S0 screw terminal for easy installation in tight spaces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Main Contacts Configuration | 3NO | Mechanical Life | 10 million operations |
Operating Temperature Range | -25~+60℃ | Auxiliary Contacts | 1NO1NC |
Coil Voltage | 220V AC 50/60Hz | Coil Power Supply | 50/60Hz |
Coil Frequency | AC | Number of Poles | 3P |
Specification | S0 | Rated Current AC-3 | 25A |
Type | Contactor | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model | 3RT6026-1AN20 |
Specifications may be subject to change without notice
