Product Model

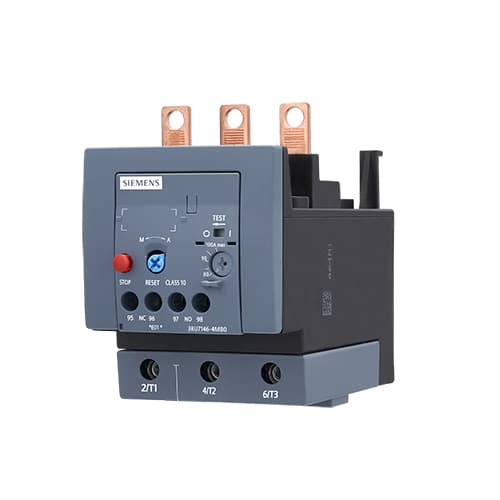

3RU7146-4JB0
Selling Points
- 1IEC Rated Thermal Overload Relay: Protects three-phase motors against overload, phase asymmetry, and phase failure.
- 2Class 10 Tripping Protection: Cuts power to the contactor in 10 seconds or less in an overcurrent condition.
- 3Adjustable Current Range: Adjustable from 45 to 63 amps for versatile motor protection.
- 4Manual/Automatic Reset: Offers both manual and automatic reset options for complete motor protection.
- 5Phase Failure Protection: Minimizes heating of the load during single-phase operation due to phase failure.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Packaging Quantity | 1 | Quantity Unit | 1 Piece |
Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
