Product Model

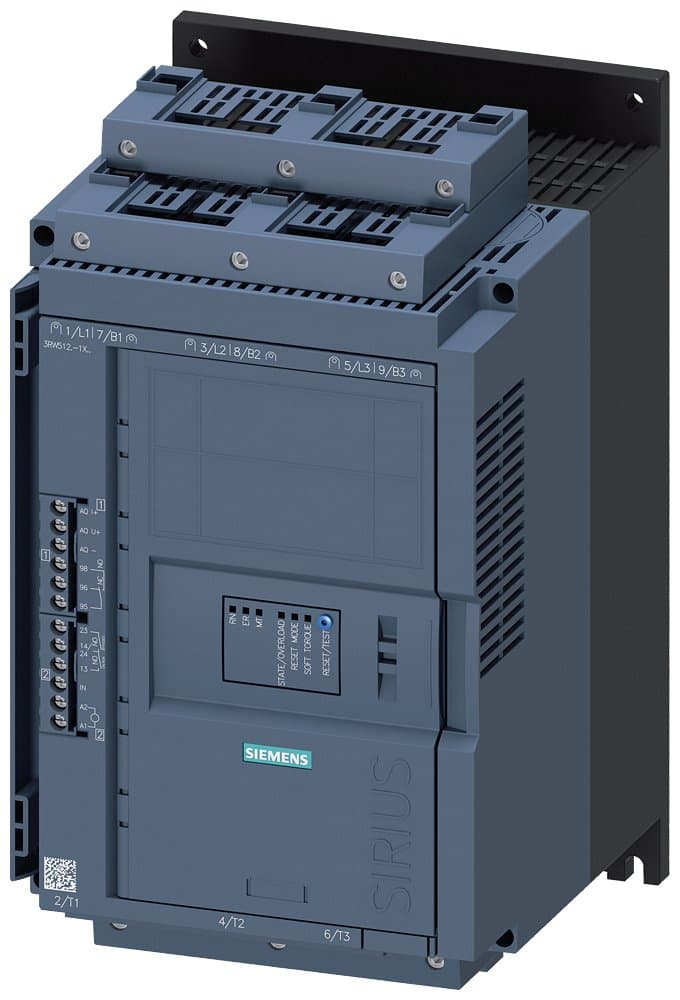

3RW5127-1XC14
Selling Points
- 1Efficient Motor Control: The Siemens 3RW5127-1XC14 soft starter ensures smooth and efficient motor control with adjustable current limitation.
- 2High Feature HMI Module: Compatible with high feature HMI modules for advanced monitoring and control capabilities.
- 3Wide Voltage Range: Operates at 200-480V AC, suitable for various industrial applications.
- 4Integrated Bypass Contact System: Includes an integrated bypass contact system for enhanced reliability and safety.
- 5Comprehensive Communication Options: Supports PROFINET, Modbus RTU, and PROFIBUS protocols for seamless integration into industrial networks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Control Method | AC | Integrated Motor Overload Protection | true |
Rated Ambient Temperature (Without Derating) | 40°C | Rated Power (Three-phase Motor, Internal Delta Connection, 400V) | 90kW |
Rated Power (Three-phase Motor, Internal Delta Connection, 230V) | 45kW | Rated Power (Three-phase Motor, Standard Circuit, 400V) | 45kW |
Rated Power (Three-phase Motor, Standard Circuit, 230V) | 22kW | Rated Operating Current Ie (40°C Tu) | 93A |
Protection Method IP | IP00 | Minimum Rated Control Voltage Us (AC 60Hz) | 110-250V |
Minimum Rated Control Voltage Us (AC 50Hz) | 110-250V | Rated Operating Voltage | 200-480V |
Product Type | 3RW5 Soft Starter | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | 9N9999 |
AL | N | Model Number | 3RW5127-1XC14 |
Specifications may be subject to change without notice
