Product Model

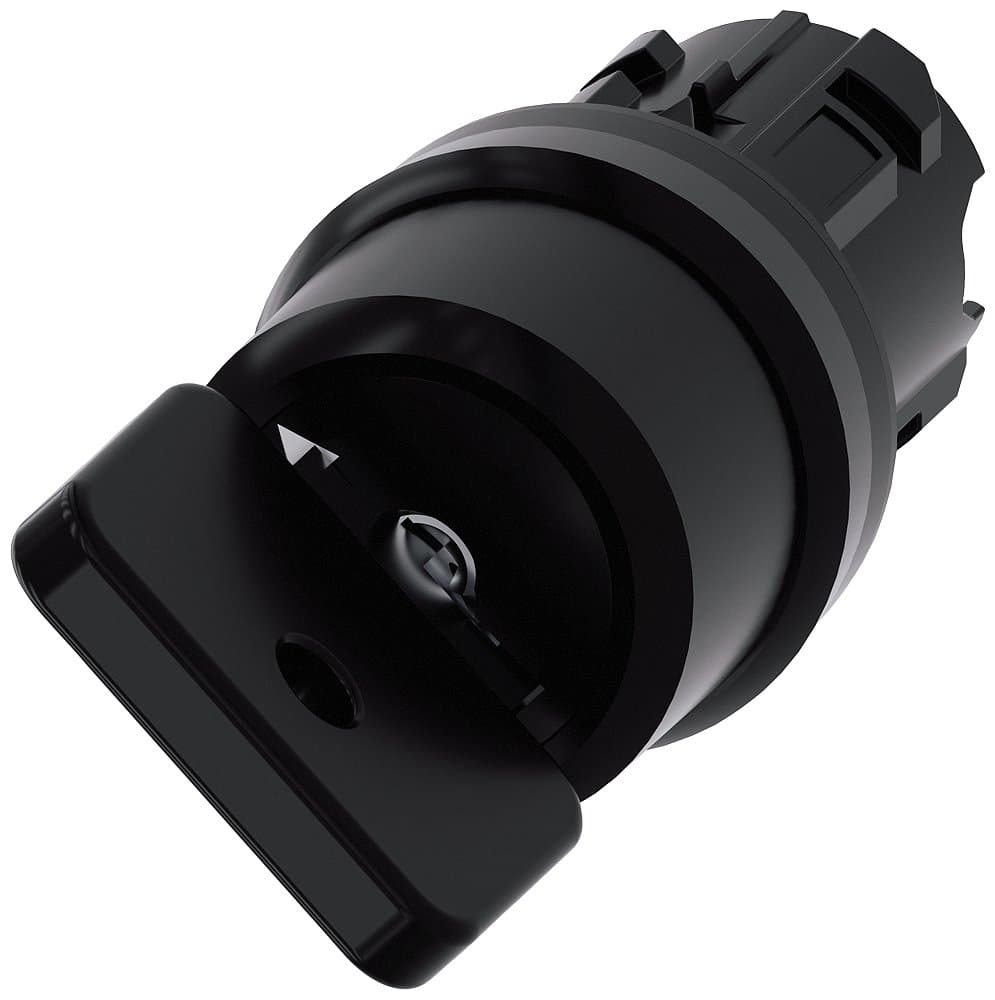

3SU1000-4HF01-0AA0-ZY15
Selling Points
- 1High Reliability: Latching mechanism ensures consistent operation.
- 2Durable Design: Made from metal with a silver actuating element for long service life.
- 3Environmental Resistance: IP66, IP67, and IP69K protection against dust and water.
- 4Easy Installation: Simple geometry for mounting holes, no special tools required.
- 5Versatile Use: Suitable for extreme environments and hazardous areas with ATEX certification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Head Protection Rating | IP66, IP67, IP69K | Mechanical Life | 300,000 |
Operating Temperature Range | -25~+70℃ | Rated Insulation Voltage | 500V |
Lock Assembly | Lock assembly O.M.R 73034 Black | Key Withdrawal Position | Key withdrawn position O |
Other | ZY15 [All words in uppercase] | Diameter | Bore diameter 22mm |
Enclosure Material | Plastic | Form | Self-locking 90° |
Button Type | Two-position key button | Type | Button Head |
Product Type | Key Button | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | EAR99 |
AL | N | Model Number | 3SU1000-4HF01-0AA0-ZY15 |
Specifications may be subject to change without notice
