Product Model

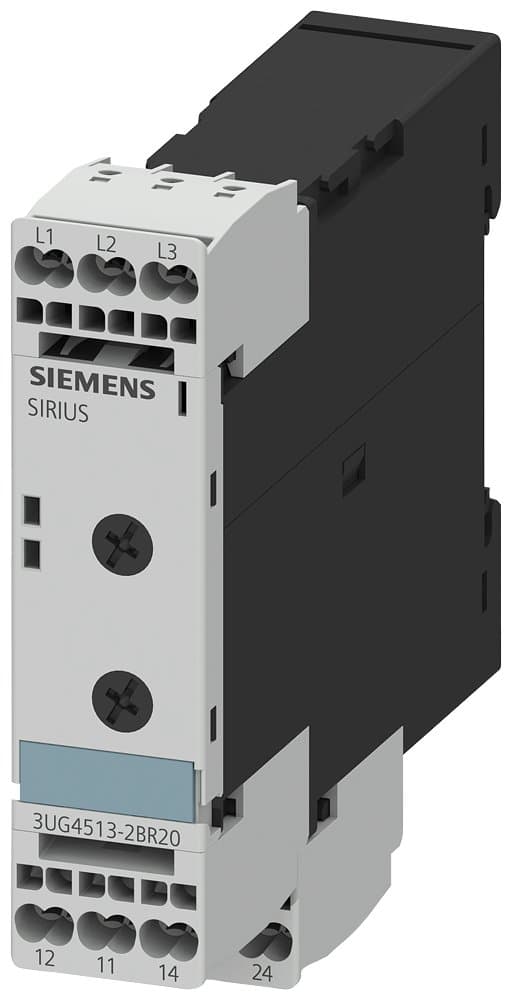

3UG4513-2BR20
Selling Points
- 1Advanced Phase Monitoring: Detects phase failure, sequence, and asymmetry with adjustable undervoltage settings.
- 2Wide Voltage Range: Compatible with 3 x 160 to 690 V AC, 50 to 60 Hz, ensuring broad application flexibility.
- 3High Reliability: Features 2 change-over contacts with spring-type connection system and 10 million mechanical service life.
- 4Galvanic Isolation: Provides galvanic isolation between input and output, ensuring safe operation in various environments.
- 5Durable Design: Built with IP20 protection class and resistant to shock and vibration according to IEC standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Packaging Quantity | 1 | Quantity Unit | 1 Piece |
Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
