Product Model

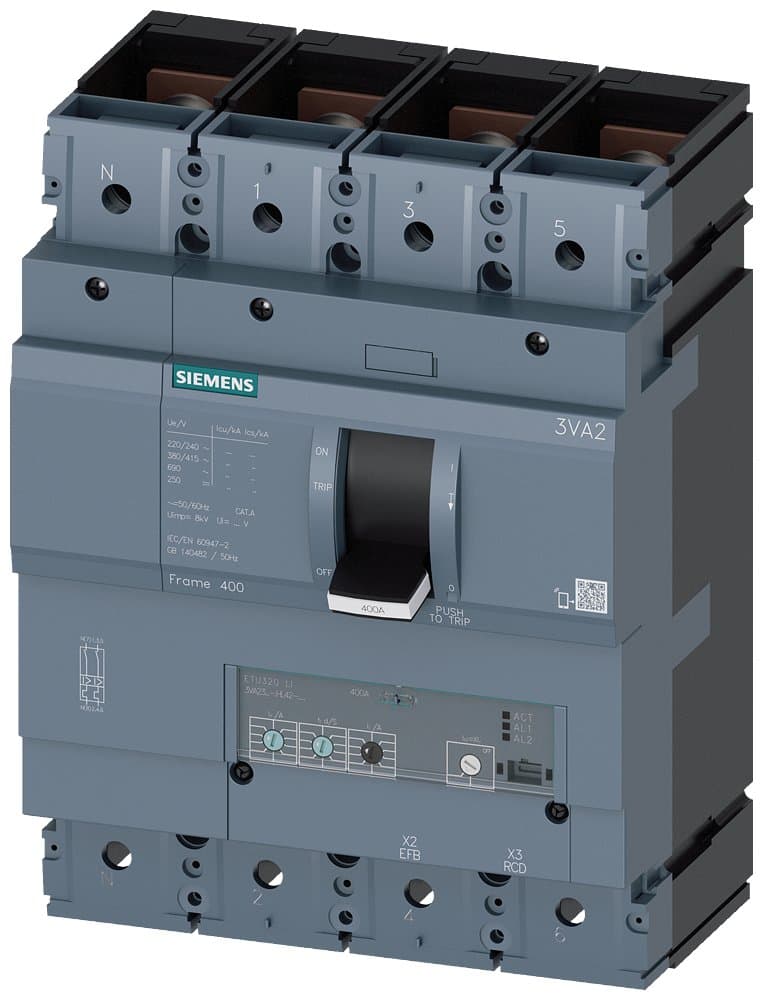

3VA2325-7HL42-0AA0
Selling Points
- 1High breaking capacity of 110 kA @ 415 V.
- 2Reliable line protection with ETU320.
- 3Efficient overload protection up to 250 A.
- 4Compact dimensions: 7.2 x 9.8 x 5.4 inches.
- 5Free delivery available in select regions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA2C400 R250 ETU320 F/4P; 3VA2_400 dimensions; Rated current 250A; Interrupting rating C:110kA; Trip unit ETU320; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU320 [Electronic Type LI] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
Rated Current In(A): | 250 | Specifications: | 400 [250-400A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2325-7HL42-0AA0 |
Specifications may be subject to change without notice
