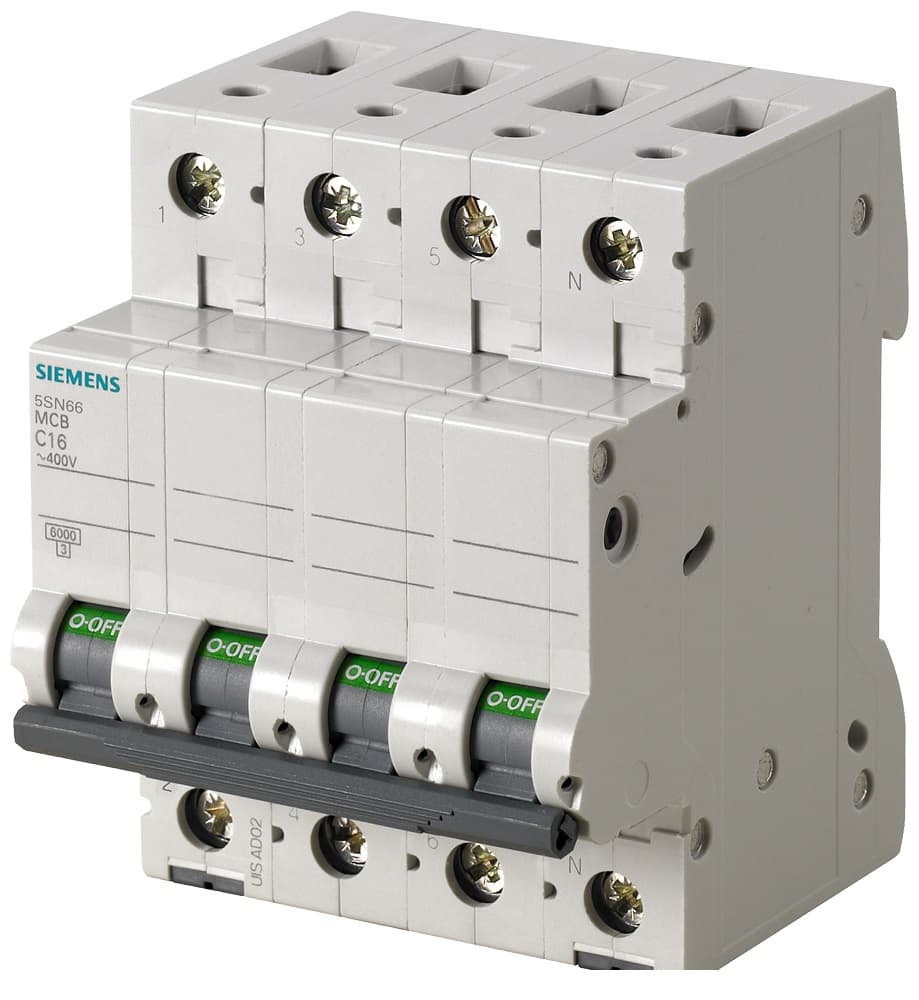

Product Model
5SN6606-8CN
Selling Points
- 1High interrupt rating of 6 kA for reliable protection.
- 2Thermal/magnetic trip for accurate fault detection.
- 3Easy mounting on DIN rails for quick installation.
- 4Compact dimensions of 90 mm H x 72 mm W x 76 mm D.
- 5Suitable for 400 VAC applications with a 16 A amperage rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Installation Module | 4 | Specification | 5SN6【6-63A】 |
Number of Poles | 3P+N | Trip Unit | D【D characteristic curve】 |
Breaking Capacity Icn(kA) per IEC60898 Standard | 6 | Rated Current In(A) | 6 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 5SN6606-8CN |
Specifications may be subject to change without notice
