Product Model

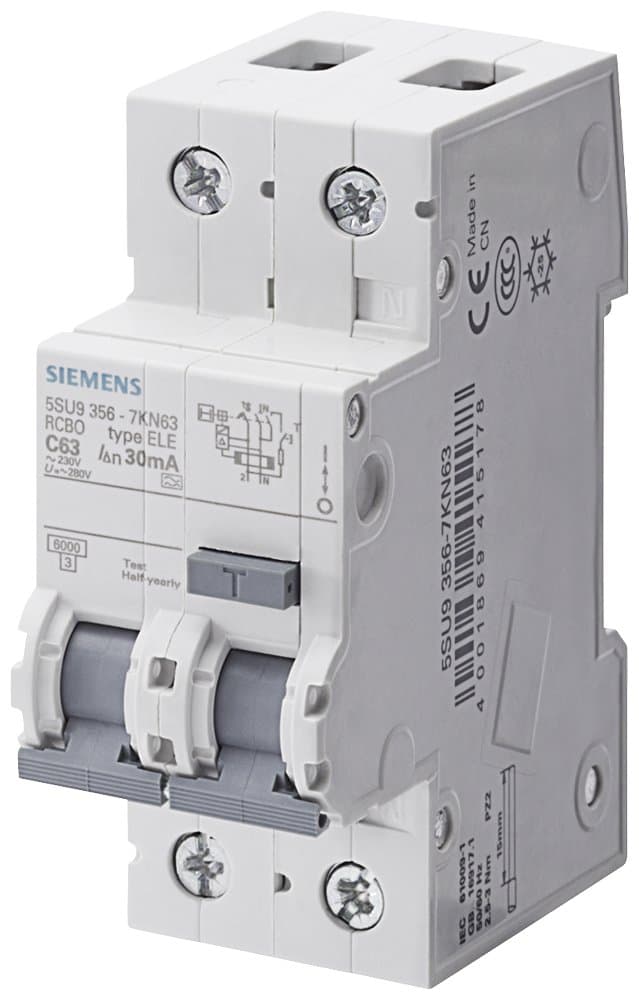

5SU9356-7KN63
Selling Points
- 1High-Performance Electrical Protection: Designed to safeguard against electrical faults with a rated short-circuit breaking capacity of 6 kA.
- 2Overvoltage Self-Protection: Equipped with overvoltage protection up to 280 V, ensuring comprehensive safety.
- 3Compact Design: Ideal for space-saving installations in distribution boards, measuring 70mm in built-in depth.
- 4Concurrent Neutral Conductor Switching: Capable of concurrently switching the neutral conductor, enhancing operational efficiency.
- 5Anti-Nuisance Tripping Version: Features anti-nuisance tripping to minimize false tripping, ensuring reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Description | 5SU9_A_0.03 1P+N C63 6KA; Rated Current 63A; Breaking Capacity 6kA; Trip Unit C; 1P+N; Residual Current 30mA; A; Electronic | Testing Method: (ELE: Electronic, ELM: Electromagnetic) | Electronic |
Leakage Current Type: | A | Residual Current: | 30mA |
Breaking Capacity Icn(kA): Standard IEC60898 | 6 | Product Type: | Residual Current Circuit Breaker with Overcurrent Protection |
Other: | With overvoltage protection | Trip Unit: | C【C characteristic curve】 |
Number of Poles: | 1P+N | In(A): | 63 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 5SU9356-7KN63 |
Specifications may be subject to change without notice
