Product Model

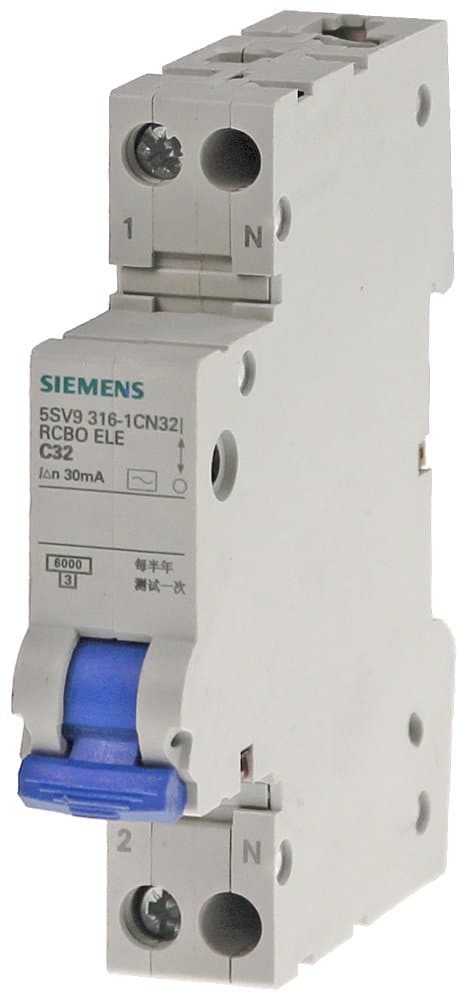

5SV9316-7CN32
Selling Points
- 1Instantaneous Protection: Provides immediate response to short circuits.
- 2High Current Capacity: 6 kA short-circuit current breaking capacity.
- 3Compact Design: Suitable for space-constrained applications.
- 4Versatile Configuration: 1P+N configuration for enhanced safety.
- 5Reliable Operation: Designed for continuous operation at 240 V AC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Type | Residual Current Protective Circuit Breaker | Number of Poles | 1P+N |
Description | 5SV9/SN A 30mA 1P+N 6KA C32; Rated Current 32A; Breaking Capacity 6kA; Trip Unit C; 1P+N; Residual Current 30mA; A; Electronic | Testing Method (ELE Electronic, ELM Electromagnetic) | Electronic |
Leakage Current Type | A | Residual Current | 30 mA |
Trip Unit | C [C Characteristic Curve] | Breaking Capacity Icn(kA) per IEC60898 Standard | 6 |
Rated Current In(A) | 32 | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | 9N9999 |
AL | N | Model Number | 5SV9316-7CN32 |
Specifications may be subject to change without notice
