Product Model

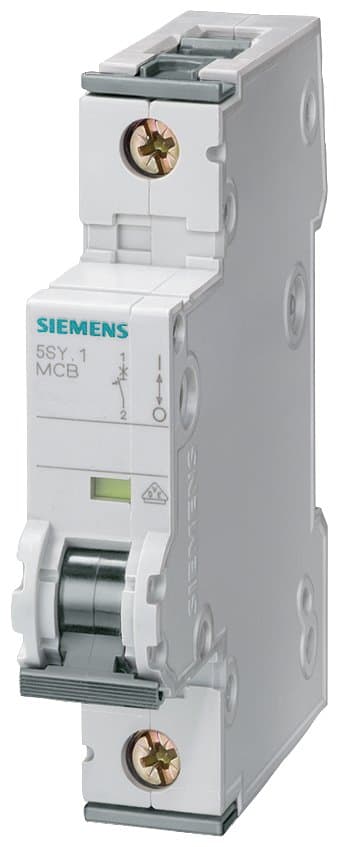

5SY7115-8CC
Selling Points
- 1High Current Rating: 15kA for reliable protection in high-current applications.
- 2Compact Design: 70 mm width, 90 mm height, and 18 mm depth for easy installation.
- 3D Tripping Characteristic: Designed for D circuit-breaker applications, ensuring consistent performance.
- 4Low Voltage Compatibility: Suitable for 230/400V AC voltage, meeting various industrial needs.
- 5Halogen-Free and Silicon-Free: Environmentally friendly, with no halogen or silicon components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Installation Module | 1 | Specification | 5SY7【0.3-63A】 |
Number of Poles | 1P | Trip Unit | D【D characteristic curve】 |
Breaking Capacity Icu(kA) per IEC60947 Standard | 50 | Rated Current In(A) | 1.6 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 5SY7115-8CC |
Specifications may be subject to change without notice
