Product Model
6AV3688-3EH47-0AX0
Selling Points

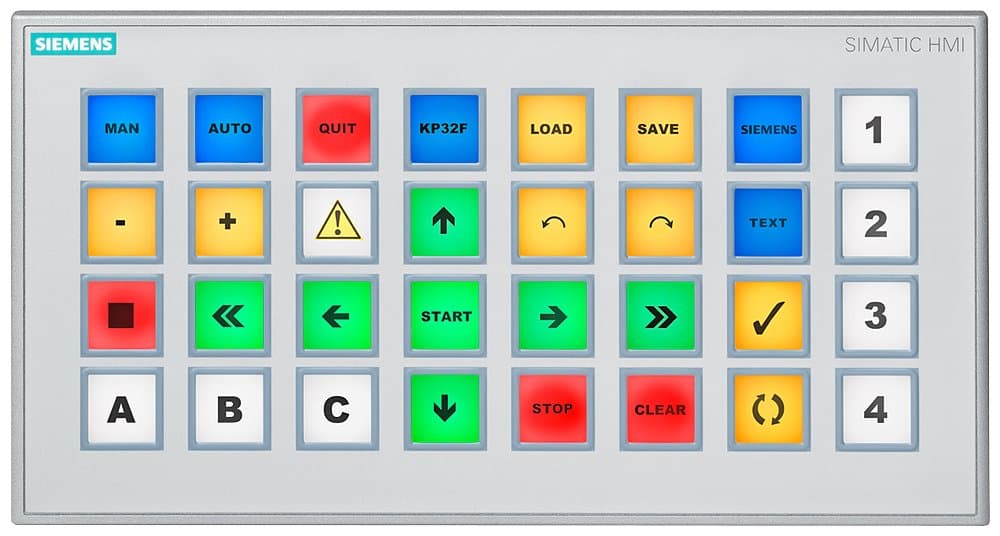

- 1Advanced Key Panel Design: Equipped with 32 short-stroke keys and multi-colored LEDs for enhanced user interaction.
- 2PROFINET Interfaces: Supports PROFINET interfaces with PROFIsafe for reliable and safe industrial communication.
- 3Flexible I/O Configuration: Offers 16 DI and 16 DI/DO, with 4 safety DI pins for customizable I/O configurations.
- 4Parameterizable Keys: Keys can be parameterized using STEP 7 V5.5, allowing for customized control elements.
- 5Durable and Rugged: Designed with an IP65 rating, ensuring dust-tight and water-resistant operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Packaging Quantity | 1 | Quantity Unit | 1 Piece |
Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
